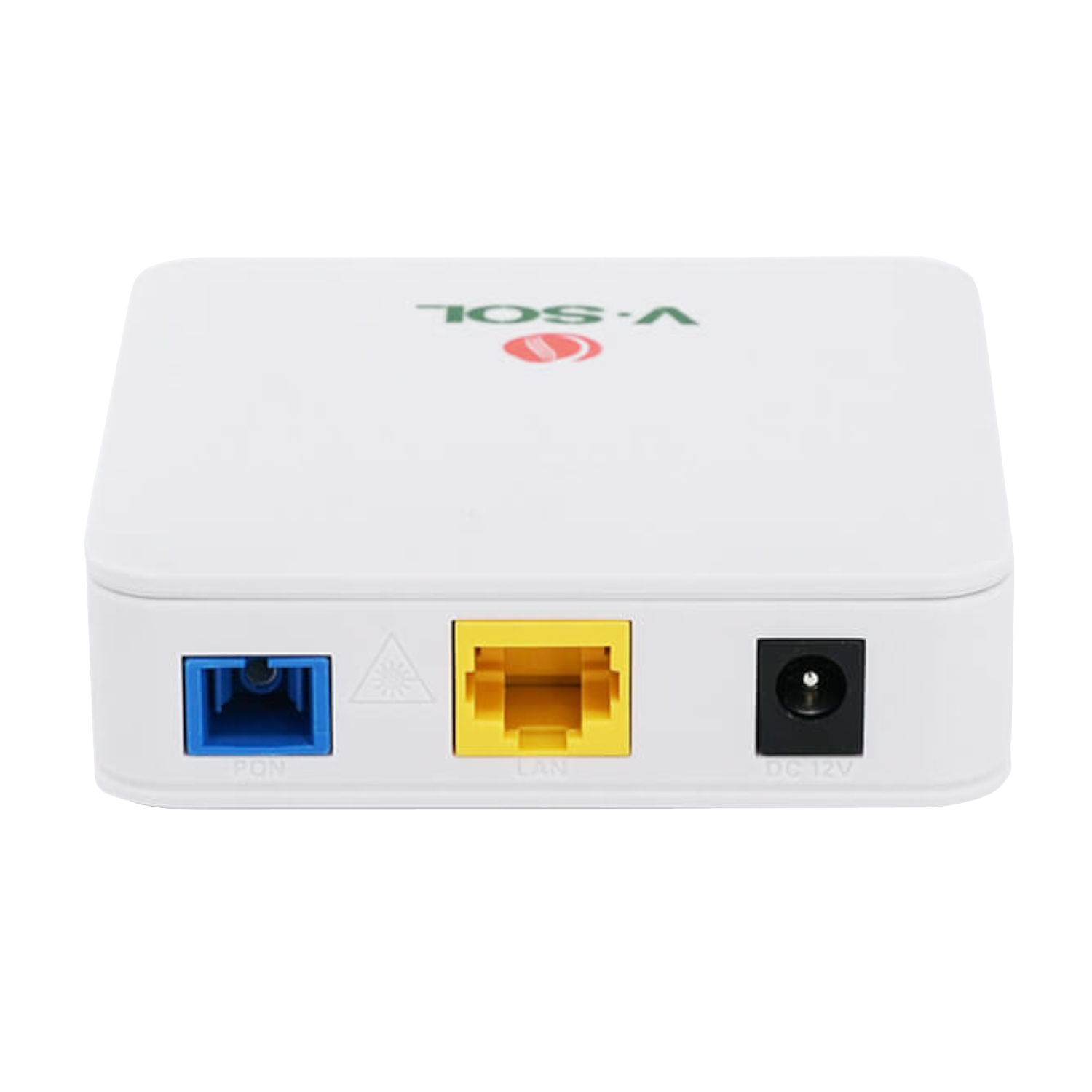

V-Sol V2801SG 1GE+ XPON Optical Network Unit

Description

Description

The V-Sol V2801SG 1GE+ XPON Optical Network Unit (ONU) is a high-performance solution designed to meet the needs of FTTH, FTTD, FTTO, SOHO, and video surveillance deployments. Supporting both EPON and GPON dual-mode connectivity, it offers exceptional flexibility for telecom operators and service providers. With bridge mode and router mode support, the V2801SG adapts seamlessly to various network configurations, ensuring reliable, carrier-grade broadband access for homes and businesses alike.
Engineered for stability, the V2801SG ensures a long-term, consistent connection, even in challenging climates, thanks to its wide-temperature design. It features hardware rogue ONU detection and dying gasp protection to maintain uptime and safeguard network integrity. With a 20km transmission distance and high optical sensitivity, this ONU is built to deliver robust performance in both urban and remote installations.
Security is at the core of the V2801SG. Its integrated firewall chipset includes Anti-DDoS, Anti-virus, and filtering capabilities based on ACL, MAC, URL, whitelist, and blacklist rules. These advanced security measures protect networks from malicious attacks and unauthorized access, ensuring safer internet connectivity. Additionally, QoS features guarantee stable performance for critical services, whether for business productivity, home entertainment, or surveillance systems.
Designed with a compact form factor, the V-Sol V2801SG offers desktop and wall-mount installation options, making it suitable for a variety of spaces. Its small footprint saves space while maintaining full functionality, and the easy plug-and-play setup simplifies deployment. Whether you’re a telecom operator looking for scalable ONU solutions or an end user seeking a fast, stable, and secure fiber connection, the V-Sol V2801SG delivers performance and reliability in a sleek package.
FEATURES:

XPON Dual Mode
Automatic access to EPON/GPON
Powerful firewall
Prevent Rogue ONT
Wide Temp Design
Security ONT
Secure and dependable

SPECIFICATIONS:

Power adapter: DC 12V, 0.5A, external AC-DC power adaptor
Power supply: ≤4W
Interfaces: 1GE
Indicators: SYS, LINK/ACT, REG
PON interface:

1 XPON port(EPON PX20+ & GPON Class B+)
SC single mode, SC/UPC connector
TX optical power: 0～+4dBm
RX sensitivity: -27dBm
Overload optical power: -3dBm(EPON) or – 8dBm(GPON)
Transmission distance: 20KM
Wavelength: TX 1310nm, RX1490nm

LAN interface: 1x GE, Auto-negotiation RJ45 connectors
XPON Mode: Dual mode, Auto-access to EPON/GPON OLT
Uplink Mode: Bridging and Routing Mode
Abnormal protection: Detecting Rogue ONU, Hardware Dying Gasp
Firewall: DDOS, Filtering Based on ACL/MAC/URL
Product Features:
Basic:

Support MPCP discover & register
Support authentication Mac/Loid/Mac+Loid
Support Triple Churning
Support DBA bandwidth
Support auto-detecting, auto-configuration, and auto firmware upgrade
Support SN/Psw/Loid/Loid+Psw authentication

Alarm

Support Dying Gasp
Support Port Loop Detect
Support Eth Port Los

LAN

Support Port rate limiting
Support Loop detection
Support Flow control
Support Storm control

VLAN

Support VLAN tag mode
Support VLAN transparent mode
Support VLAN trunk mode(max8vlans)
Support VLAN 1:1 translation mode(≤8vlans)

Multicast

Support IGMPv1/v2/Snooping
Max Multicast vlan 8
Max Multicast Group 64

QOS

Support 4 queues
Support SP and WRR
Support 802.1P

L3

Support IPv4/IPv6
Support DHCP/PPPOE/StaticIP
Support Static route
Support NAT

Management

Support CTC OAM2.0 and 2.1
Support ITUT984.x OMCI
Support WEB
Support TELNET
Support CLI

Product Dimensions: 8.2 x 8.2 x 2.5 cm
Product Weight: 85g

WHAT’S IN THE BOX:

V-Sol V2801SG 1GE+ XPON Optical Network Unit x1
