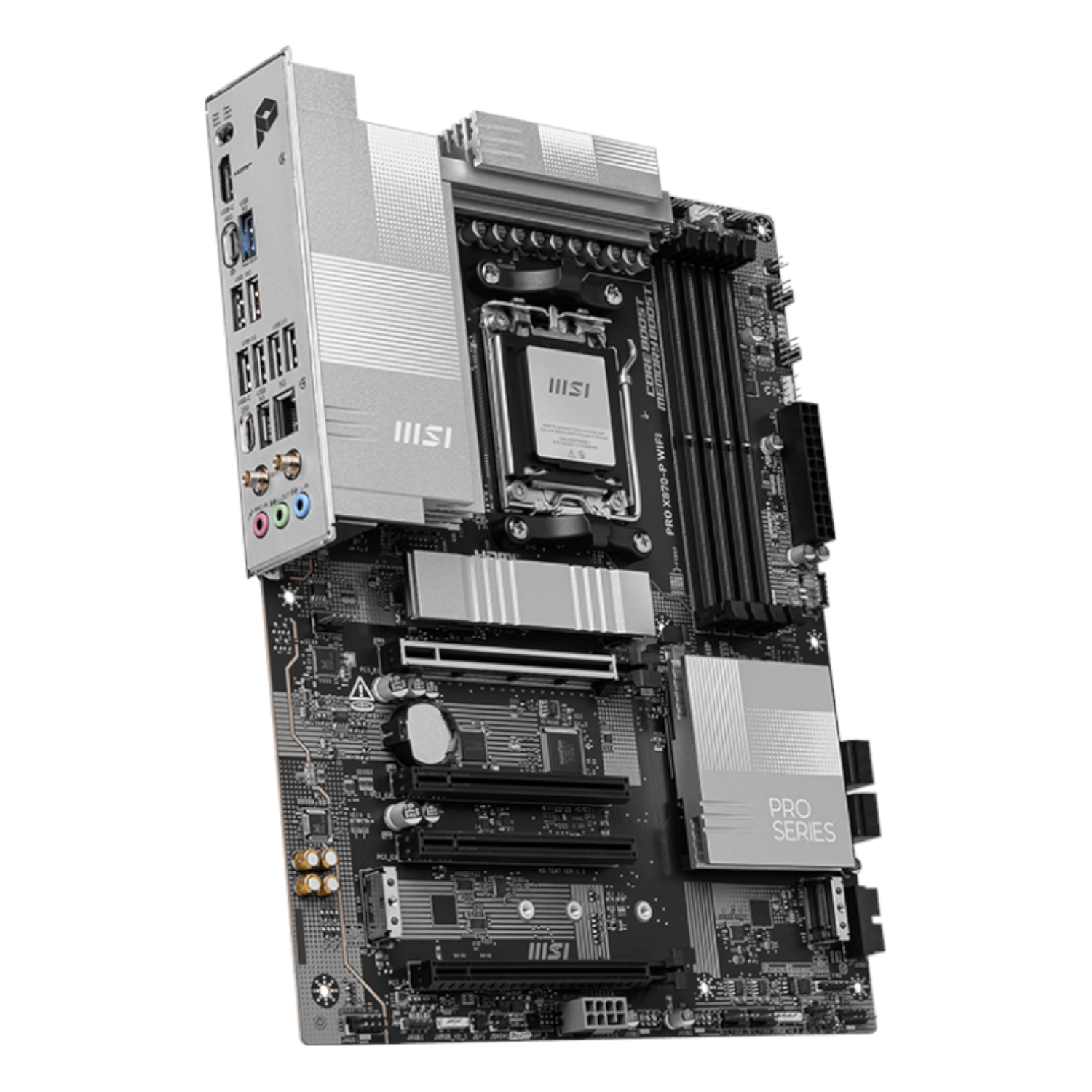

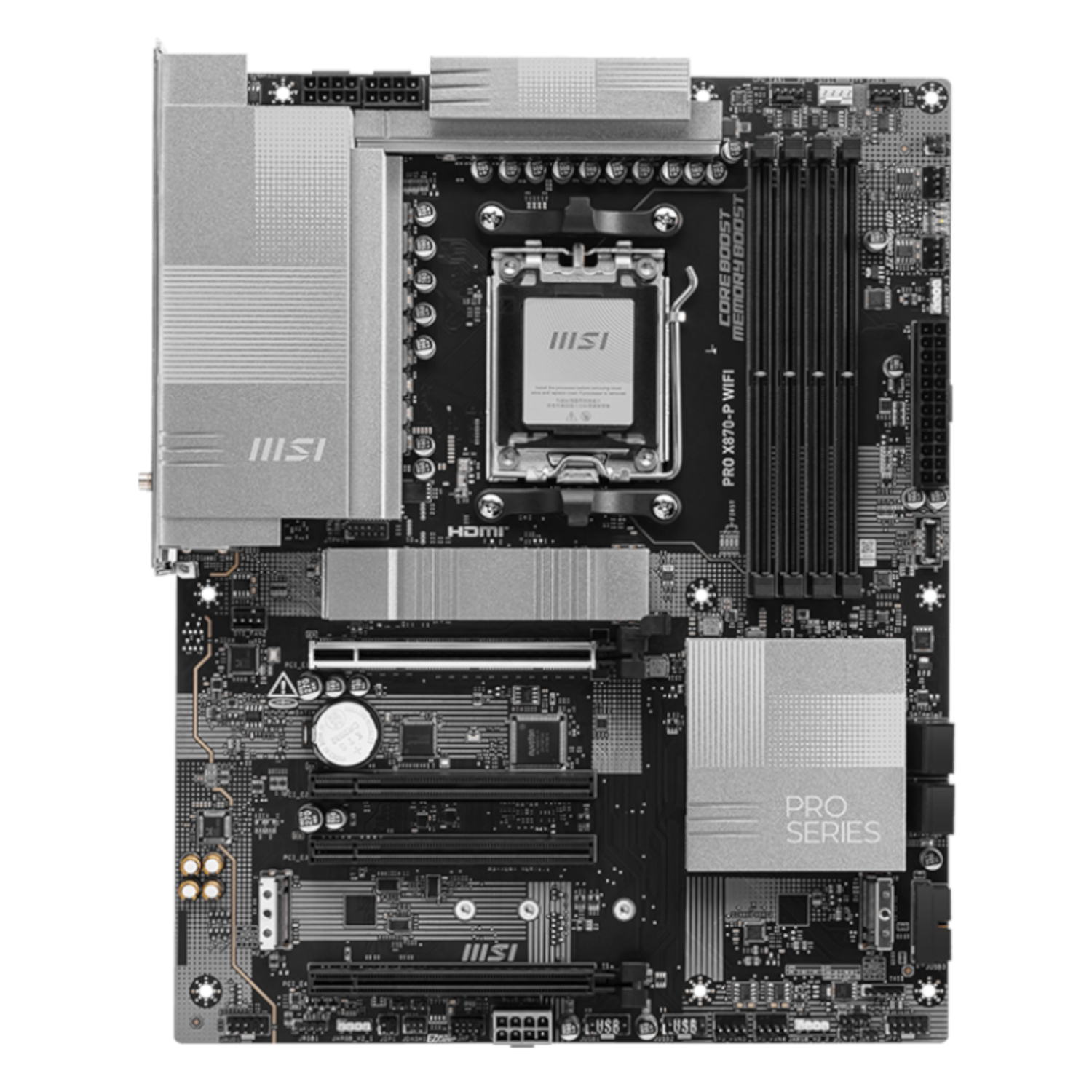

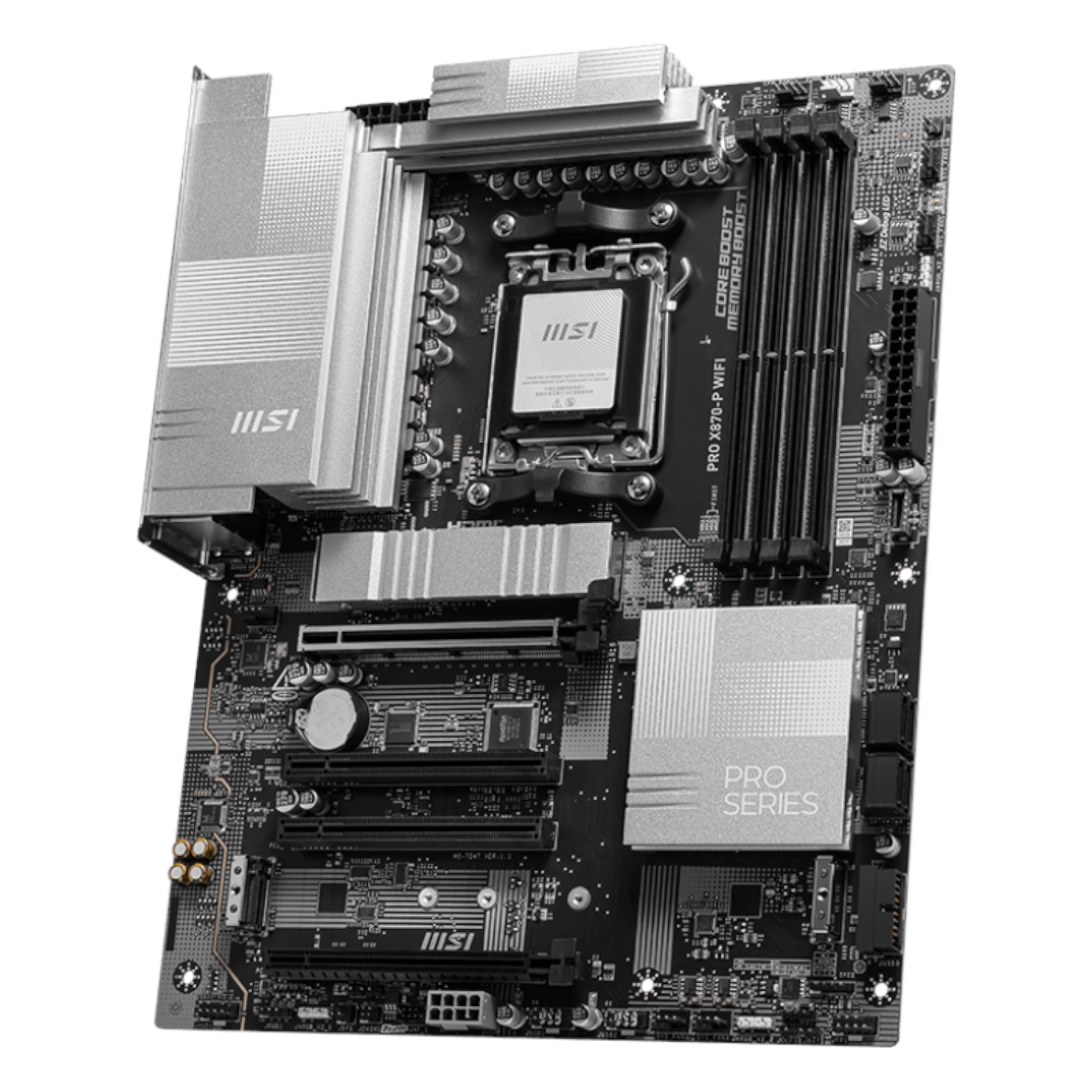

MSI PRO X870-P WIFI AM5 ATX DDR5 Motherboard

The MSI PRO X870-P WIFI AM5 ATX DDR5 Motherboard is purpose-built for professionals and power users who demand both performance and reliability. Sporting a clean and modern silver design, this motherboard seamlessly complements both black and white PC builds. At its core, the PRO X870-P is optimized for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, delivering future-ready computing with support for ultra-fast DDR5 memory, PCIe 5.0 slots, and lightning-fast M.2 storage. With MSI’s exclusive features like EZ M.2 Shield Frozr II, EZ Antenna, and Supplemental PCIe Power, this board ensures effortless installation and thermal efficiency for next-gen performance.
Connectivity is front and center with USB 4.0, 5G LAN, and Wi-Fi 7, making it an ideal choice for creators, professionals, and gamers seeking the fastest data transfer and network speeds. The Audio Boost technology enhances your sound experience with studio-grade clarity, making immersive media and gaming experiences a reality. Whether you’re building a workstation or a high-performance gaming rig, the MSI PRO X870-P WIFI delivers exceptional throughput, bandwidth, and multitasking capabilities.
Under the hood, this motherboard is engineered for extreme durability and overclocking potential. It features a 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, and advanced thermal solutions including extended heatsinks and 7W/mK MOSFET thermal pads. The support for dual-channel DDR5 memory at 8200+ MT/s (OC), along with PCIe 5.0 and Gen5 M.2, guarantees next-level speed and responsiveness for demanding applications like AI, video editing, and high-end gaming.
Built for easy DIY assembly, the MSI PRO X870-P includes a host of convenient tools such as EZ M.2 Clip II, EZ PCIe Clip II, and a user-friendly BIOS interface powered by MSI Center AI. Whether you’re a seasoned builder or setting up your first custom PC, this motherboard simplifies the process while offering robust support and expandability. With its impressive spec sheet and pro-grade build quality, the MSI PRO X870-P WIFI ATX motherboard is your gateway to unleashing the full potential of AMD Ryzen and DDR5 technologies.
FEATURES:

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, EZ M.2 Shield Frozr II are built for high performance system
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATIONS:

CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket: Socket AM5
Chipset: AMD X870 Chipset
Expansion Slots:

1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots

Display Interface:

1 x USB4 port supports USB Type-C display output,
Support 4K@60Hz as specified in HDMI™ 2.1 – Requires Processor Graphics

Memory Support: 4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC)
Storage:

1 x M.2 Gen5 x4 128Gbps slot
1 x M.2 Gen4 x4 64Gbps slot
1 x M.2 Gen4 x2 32Gbps slot
4 x SATA 6Gbps ports

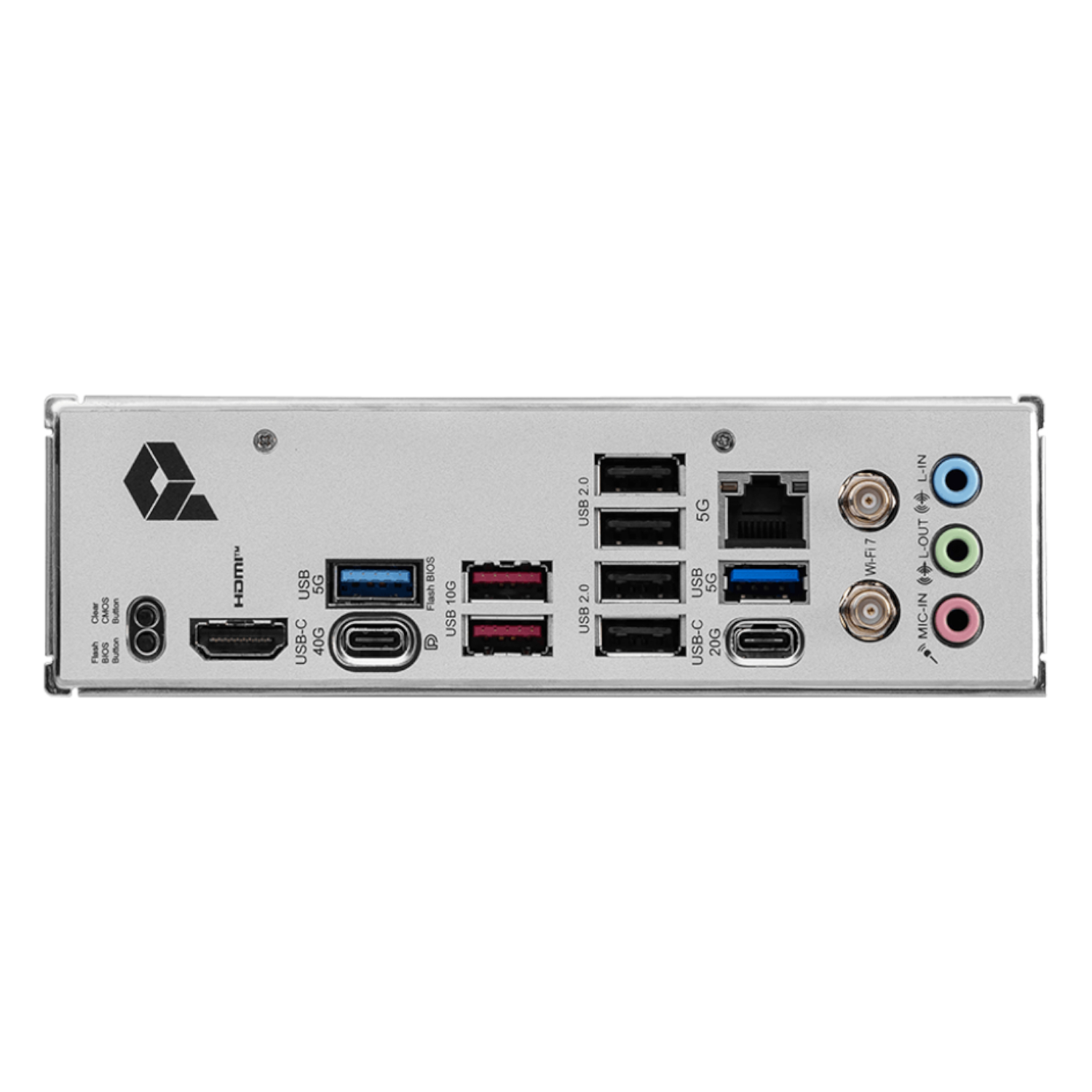

USB Ports Rear:

4x USB 2.0
2x USB 5Gbps Type A
2x USB 10Gbps Type A
1x USB 20Gbps Type C
1x USB 40Gbps Type C

USB Ports Front:

4x USB 2.0
2x USB 5Gbps Type A
1x USB 10Gbps Type C

LAN: Realtek® 8126 5G LAN
Wi-Fi / BT: Wi-Fi 7 Solution, Bluetooth 5.4
Audio: 8-Channel (7.1) HD Audio with Audio Boost
Operating System: Support for Windows® 11 64-bit
Form Factor: ATX

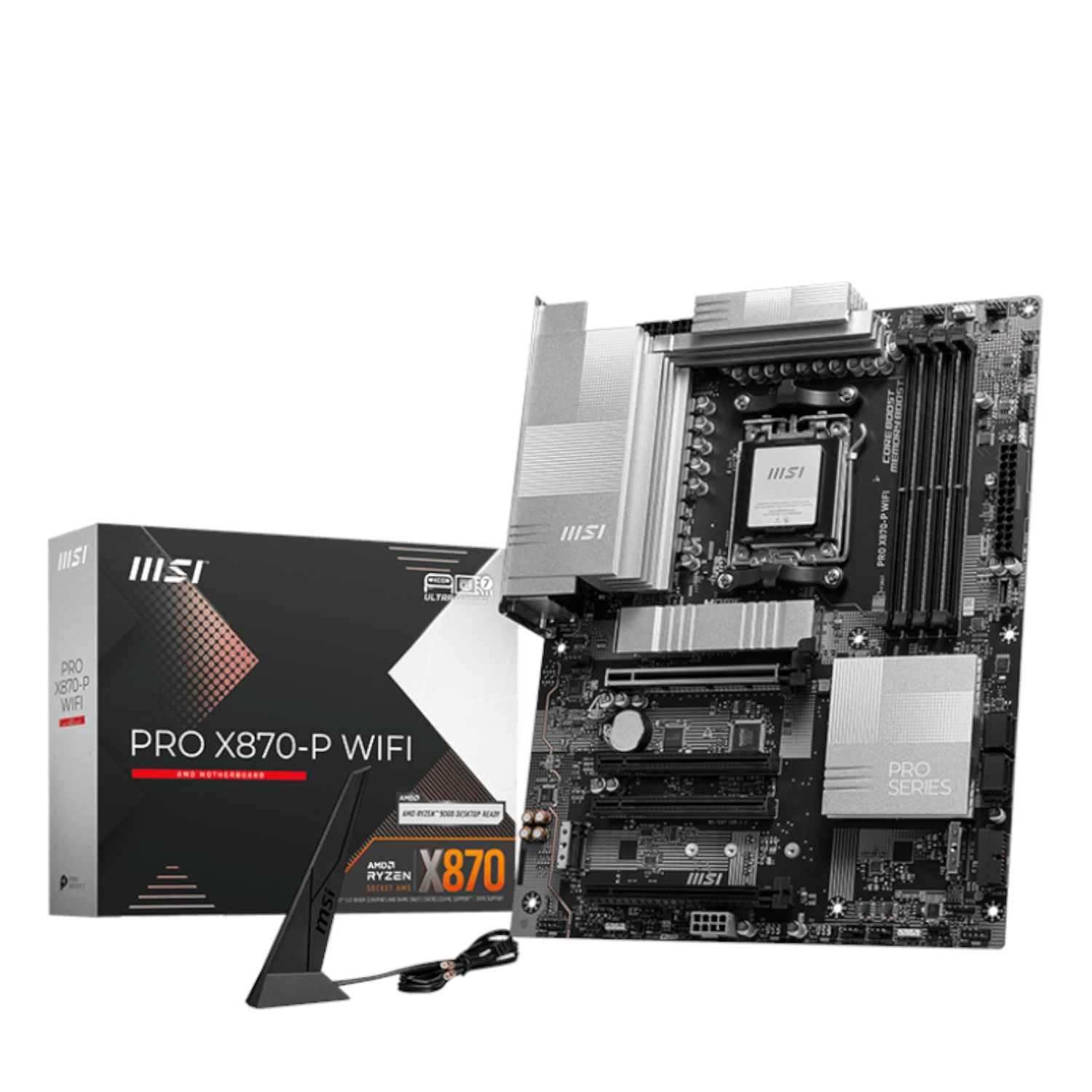

WHAT’S IN THE BOX:

MSI PRO X870-P WIFI AM5 ATX DDR5 Motherboard x1
Wi-Fi Antenna x1
SATA Cables x2
EZ M.2 Clip Remover x1
EZ M.2 Clip II x3
1 to 2 EZ con-cable x1
Quick Installation Guide x1
