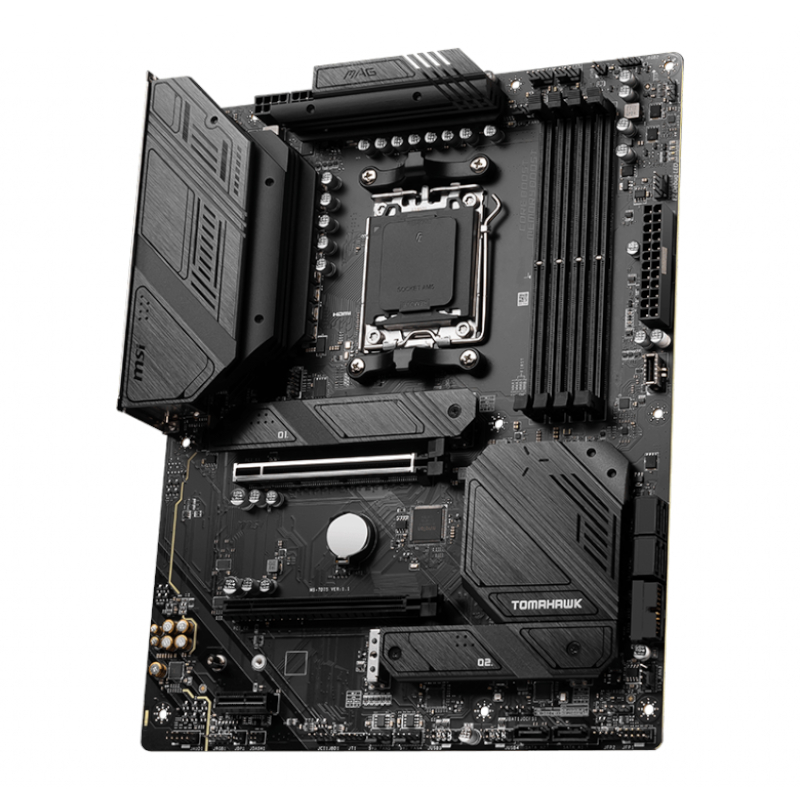

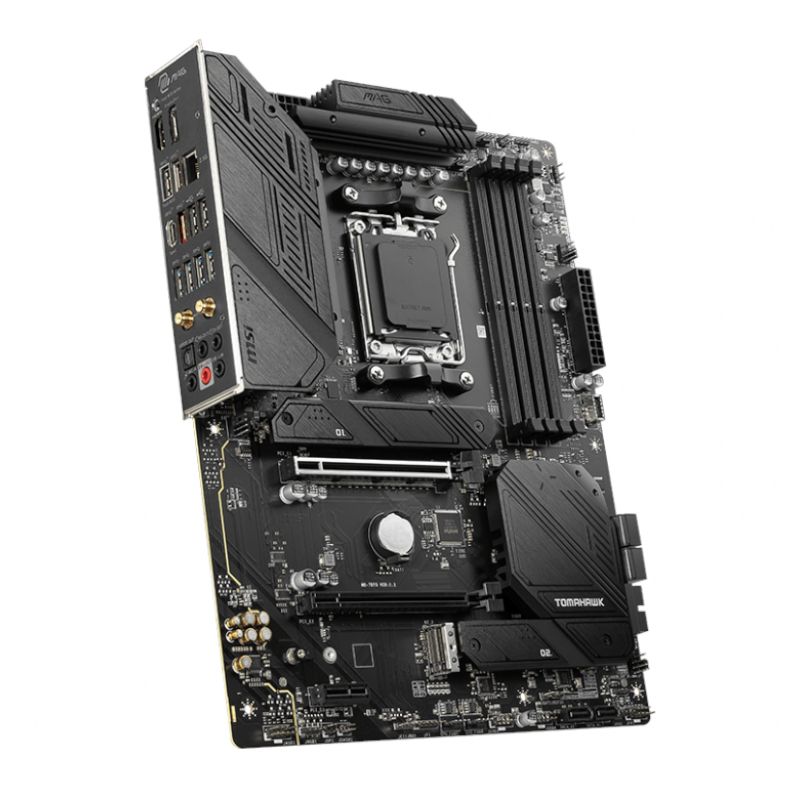

MSI MAG B650 TOMAHAWKWIFI AMD AM5 ATX Gaming Motherboard

Description

The all-new MSI MAG series lets you fight alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. Unleash and sustain maximum performance with an aggressive VRM design built with a digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.
MSI lightning Gen 4 PCI-E represents the bandwidth of an x16 interface to 64GB/s which has doubled compared to its previous generation. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. A huge step of DDR performance enhancement with the latest DDR5 memory. By combining a dedicated SMT welding process and MSI Memory Boost technology, the MSI MAG B650 TOMAHAWK WIFI is ready to deliver the world-class memory performance
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. The MSI MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
MSI MAG Series motherboards let you manage speeds and temperatures for all your system and CPU fans in the BIOS and software with a simplified graphical interface. You can also set up 4 temperature targets, which will adjust the fan speeds automatically.
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
FEATURES:

Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, up to 6400+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for high-performance systems and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe-based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATIONS:

Socket: AM5
CPU Support: Supports AMD Ryzen™ 7000 Series Desktop Processors
Chipset: AMD B650
DDR5 Memory: DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Memory Channel: Dual Channel DDR5
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 2
PCI-E x1: 1
SATAIII: 6
M.2 Slot: 3
RAID: 0/1/10
LAN: 1x Realtek® RTL8125B 2.5Gbps LAN
Wi-Fi and Bluetooth: Intel® Wi-Fi 6E module
USB 3.2 ports (Front): 1(Gen 2, Type-C), 2(Gen 1, Type A)

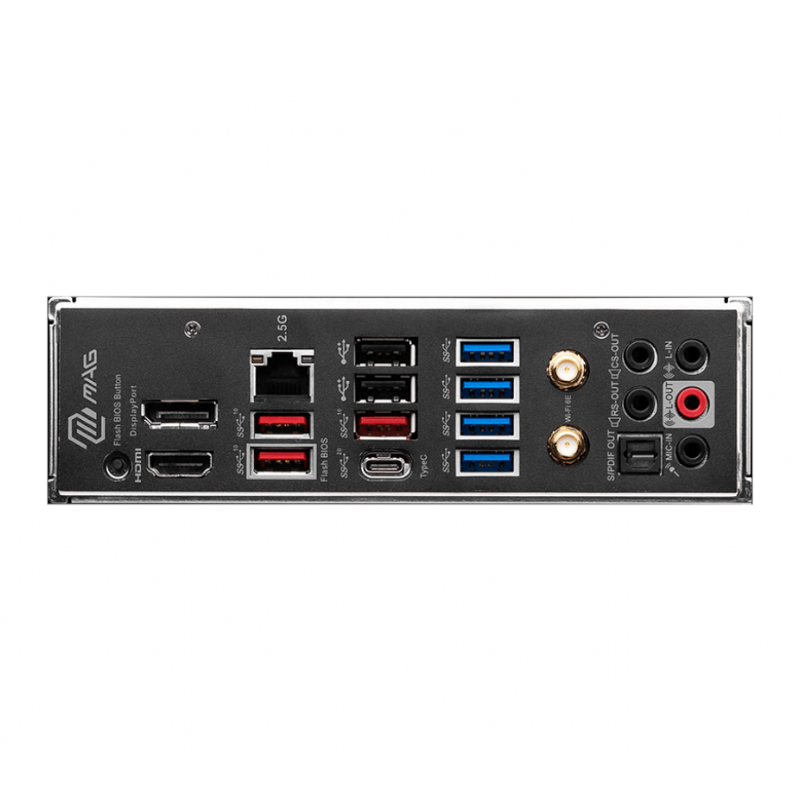

USB 3.2 ports (Rear): 1(Gen 2×2, Type-C), 3(Gen 2, Type A), 4(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 2
Audio ports (Rear): 7.1 Channel HD Audio (Realtek® ALC4080 Codec)
DisplayPort: 1
HDMI: 1
DirectX: 12
Form Factor: ATX
Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit

WHAT’S IN THE BOX:

MSI MAG B650 TOMAHAWK WIFI AMD AM5 ATX Gaming Motherboard – Black x1
Wi-Fi Antenna x2
SATA Cables x1
EZ M.2 Clips x2
Quick Install Guide x1
