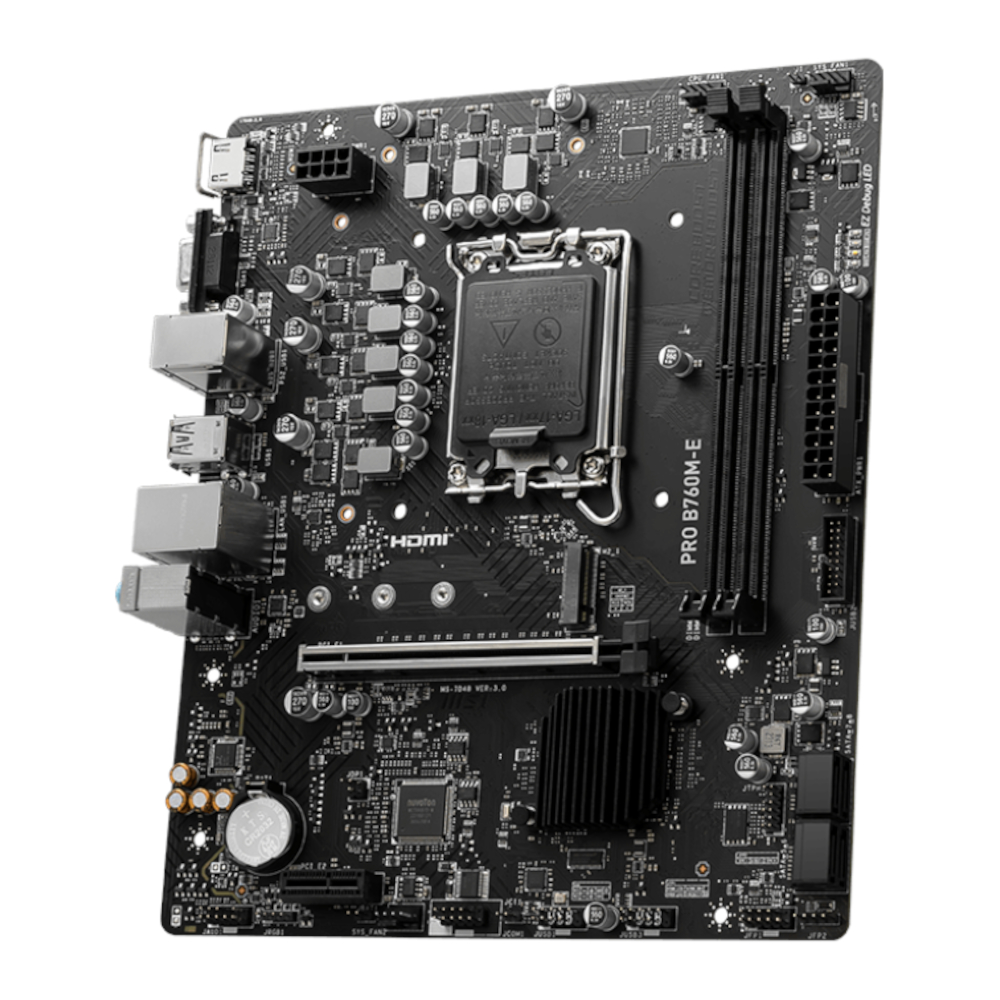

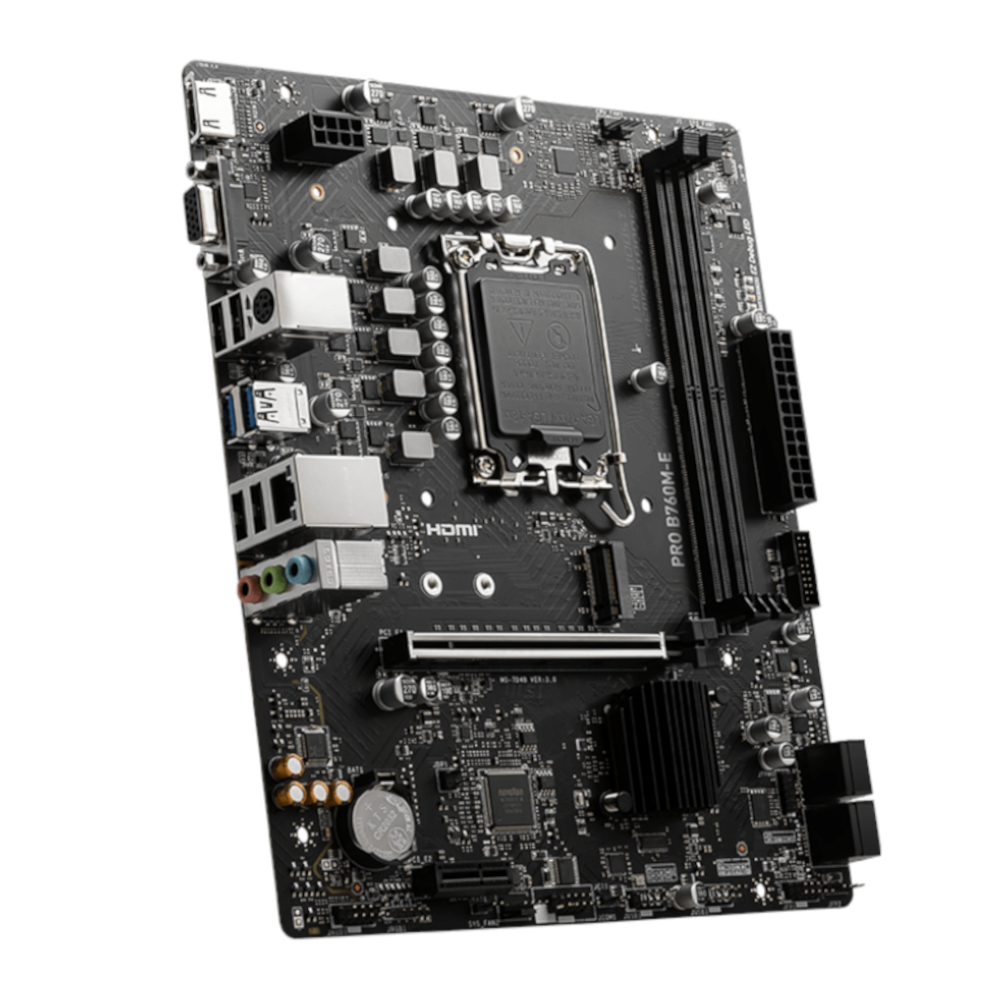

MSI B760M-E PRO DDR5 LGA1700 M-ATX Motherboard

Description

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge devices from damaging the motherboard. MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
FEATURES:

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCI-E 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

SPECIFICATIONS:

Socket: LGA 1700
CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Chipset: Intel B760
DDR5 Memory: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Memory Channel: Dual
DIMM Slots: 2
Max Memory (GB): 128GB
PCI-E 4.0 x16: 1
PCI-E 3.0: 1
M.2 Slot: 1
SATA 6G: 4
RAID: 0/1/5/10
LAN: Realtek® RTL8111H Gigabit LAN

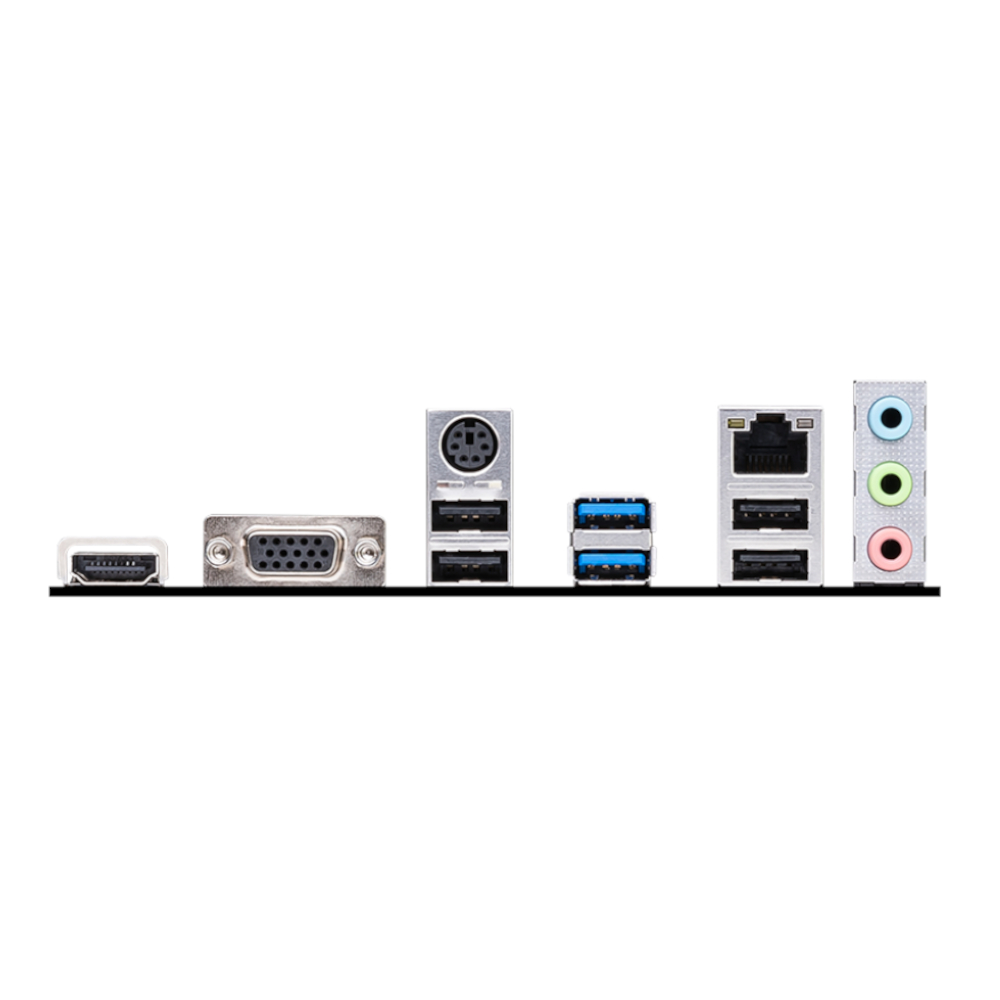

USB 3.2 ports (Front): 2(Gen 1, Type A)
USB 3.2 ports (Rear): 2(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 4
Audio ports (Rear): Realtek® ALC897 Codec
HDMI: 1
VGA: 1
DirectX: 12
Form Factor: mATX
Operating System: Support for Windows® 10 64-bit/11 64-bit

WHAT’S IN THE BOX:

MSI B760M-E PRO DDR5 LGA1700 M-ATX Motherboard – Black x1
I/O Shield x1
M.2 Standoff Set x1
SATA Cable x1
Quick Start Guide x1
