Keychron K5 Max QMK/VIA Full-sized Wireless Custom Mechanical Keyboard | RED Switches

The Keychron K5 Max QMK/VIA Low Profile Full-Sized Wireless Custom Mechanical Keyboard is an ultra-slim yet highly functional 100% layout keyboard, offering a premium typing experience with seamless connectivity. Supporting 2.4GHz wireless, Bluetooth 5.1, and wired connections, it allows users to switch effortlessly between multiple devices. The Keychron Launcher web app enables full customization, giving users the ability to remap keys, create macros, and fine-tune commands to fit their workflow. Designed for both Windows and macOS, the LSA (low-profile spherical-angled) keycaps provide a comfortable and precise typing feel.
Engineered for performance and versatility, the K5 Max boasts a 1000Hz polling rate in 2.4GHz and wired modes, ensuring ultra-low latency for gaming and professional use. The Gateron Low Profile Red switches offer a smooth, linear keystroke with minimal sound, making them ideal for both office work and gaming sessions. With the hot-swappable version, users can easily swap out switches without soldering, making customization more accessible than ever. The full-size layout includes a dedicated number pad, multimedia keys, and function keys, ensuring productivity without compromise.
Powered by QMK/VIA firmware, the K5 Max unlocks endless possibilities for key remapping, shortcuts, and advanced macros. The ARM Cortex-M4 32-bit MCU with 256KB Flash ensures smooth performance, while IXPE acoustic foam reduces keystroke noise, offering a quieter and more comfortable typing experience. Redesigned stabilizers minimize key wobble, particularly for larger keys like Spacebar, Shift, Enter, and Backspace, resulting in a more consistent and satisfying feel. Mac users will appreciate the dedicated macOS layout, which replicates the Apple keyboard function keys while improving on tactile feedback.
Aesthetically, the K5 Max blends a durable aluminium frame with double-shot PBT keycaps, ensuring long-lasting performance with oil resistance and minimal wear. The keyboard features 22 RGB backlight effects, allowing users to customize brightness, hue, and speed for a visually immersive experience. With a 2000mAh battery, it delivers up to 90 hours of wireless usage with the backlight off and 50 hours with RGB at its lowest brightness. Combining ultra-slim design, powerful features, and full customization, the Keychron K5 Max is the ultimate choice for those seeking a high-performance, full-sized mechanical keyboard.
FEATURES:

Customisable keyboard with 100% layout
2.4GHz & Bluetooth connection
QMK/VIA Support
Double-shot PBT keycaps
Ultra-slim design
Hot-swappable
RGB LED lights
Low profile Gateron Low Profile RED switches
Acoustic foam

SPECIFICATIONS:

Colour: Black
Number of Keys: 108 (100%)
Switches: Gateron low-profile mechanical
Switch Face: North-facing
Number of Multimedia Keys: 12
Frame Material: ABS + Aluminium frame
Keycap Material: Low-profile double-shot PBT
Layout: ANSI
Polling Rate (2.4GHz and Wired Mode): 1000Hz
Polling Rate (BT Mode): 90Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes
Backlit: 22 types of RGB backlight options plus endless possibilities
Battery: 2000mAh rechargeable li-polymer battery
Wireless Working Time (Backlit off): Around 90 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB): Around 50 hours (Lowest brightness)
Connection: 2.4GHz / Bluetooth / Type-C wired
Bluetooth version: 5.1
Bluetooth Device Name: Keychron K5 Max
Compatible System: macOS / Windows / Linux
Typing Angle: 3.37º, 4.36º and 6.56º
MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Operating Environment: -10 to 50℃

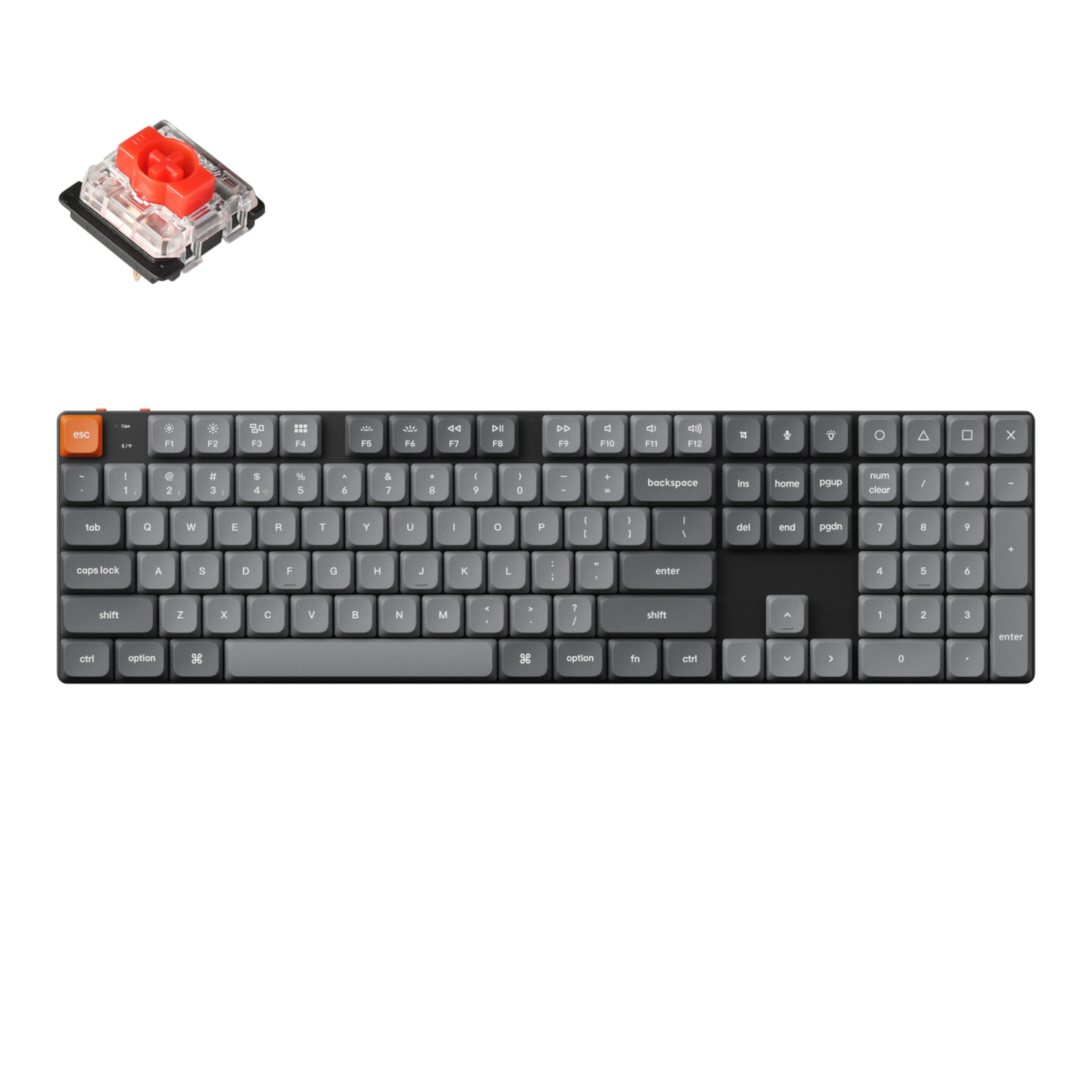

Gateron Low Profile RED Switch:

Operating force: 50 ± 15 gf
Pre-travel: 1.7 ± 0.4mm
Travel distance: 3.0 ± 0.2mm
Behavior: Linear
Pre-lubed: Yes
Sound level: Low
Suitable for: Office/gaming

Product Dimensions: 42.4 x 11.9 x 1.8~2.3 cm
Product Weight: 720g

WHAT’S IN THE BOX:

Keychron K5 Max QMK/VIA Low Profile Full-sized Wireless Custom Mechanical Keyboard | RED Switches – Black x1
Type-A to Type-C Cable x1
Extension Adapter for Receiver x1
Type-A 2.4GHz Receiver x1
Keycap & Switch Puller x1
