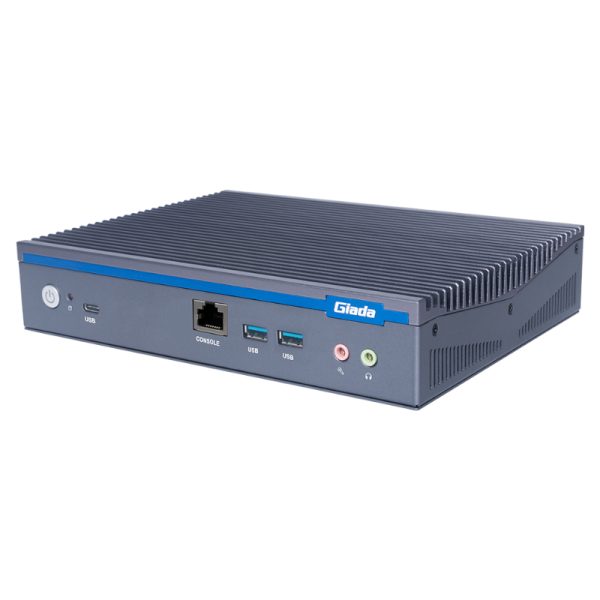

Giada RN28 with Intel N100 1x DDR4 3200Mhz x6 RJ45

The Giada RN28 adopts the formidable Intel Alder Lake-N processors, manufactured using an Intel 7 process. The network appliance adopts Processor N100 with 4 Cores and 4 threads. Meanwhile, RN28 features TDP under 15W, which provides superior processing power while minimizing energy consumption.
The RN28 model is designed for faster, more flexible connections, the RN28 comes with two Gigabit RJ-45 supporting a BYPASS pair on Lan 1-2, four Gigabit RJ-45 supporting PoE, allowing fast and direct connections. The RN28 also provides wireless flexibility, supporting Wi-Fi 5/6/6E
RN28 is equipped with four RJ45 ports that support Power over Ethernet (PoE) technology. Each of these ports is capable of delivering up to 30W of power. This design combines data connectivity and power delivery, simplifying network setup while providing seamless power to PoE-compatible devices. Featuring fanless design, this network appliance is perfect to be used in noise-sensitive environments.
FEATURES:

Intel® Processor N100
1 x HDMI, Supporting 4K
1 x SO-DIMM DDR4 Memory, Up to 16GB
1 x M-key M.2 (2280) for SSD
Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access

SPECIFICATIONS:

Processor:
CPU: Intel® Processor N100
Frequency: 3.40 GHz
Cores: 4 Cores
Memory:
Type: DDR4-3200MHz
Socket: 1 x SO-DIMM
Max Size: Up to 16 GB
Graphics:
GPU: Intel® UHD Graphics
Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0
HDMI: 1 x HDMI (Max.4096 x 2160 @60 Hz)
Network:
Controller: 6 x Intel i219-LM Gigabit Ethernet
Interface: 2 x GbE RJ45, 4 x GbE RJ45 (30 W PoE/LAN)
Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
I/O:
USB: 1 x USB Type-C3.2 Gen1 (5 Gbps), 2 x USB3.2 Gen1 (5 Gbps)
Serial Port: 1 x RJ45 Console (RS232)
Audio: 1 x Mic-In, 1 x Audio-Out
Button: 1 x Power on, 1 x CLR-CMOS
Antenna: 2 x Connector for Wi-Fi/BT
Storage:
Socket 1: 1 x M-Key M.2 (2280) for PCIe X2, for SSD
Socket 2: 1 x 2.5″ SATAIII, for HDD
JAHC Tech:
WatchDog Timer: Yes
Auto Power On: Yes
Operation System:
Windows: Windows 11 (64bit)
Linux: Linux Ubuntu (64bit)
Power:
Power Type: DC-IN
Input Voltage: DC-IN, 19 V/3.42 A
Environment:
Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Relative Humidity: 95%@45℃ (non-condensing)
Certification: CE, FCC Class B, UKCA
Construction: Metal, Grey
Colour: Black
Dimensions: 20 cm x 15 cm x 4 cm

WHAT’S IN THE BOX:

Giada RN28 Intel N100 Embedded Computer – Grey x1
WiFi Antenna x1
User Manual x1
