Giada D613-U1 Intel Core i5-1335U High-end Digital Signage Player

Description

Description

Quick Specs

Experience seamless performance with the Intel Core i5-1335U processor.
Drive up to four HDMI displays simultaneously for captivating visual experiences.
Connect effortlessly with 2.5GbE LAN and optional 5G mobile network support.
Enjoy flexible storage options and up to 96GB DDR5 memory for demanding applications.
Benefit from reliable operation in temperatures up to 45°C, ideal for diverse environments.

Elevate Your Digital Signage Experience with Giada
Giada’s D613-U1 digital signage player, powered by an Intel Core i5 processor, delivers the robust performance and reliability needed for demanding applications. Transform how you communicate with your audience through visually stunning and seamlessly delivered content. As a leading provider of digital signage players, Giada empowers South African businesses to create impactful experiences.
A True 4K Quad-Display Powerhouse
With four HDMI outputs, the D613-U1 can drive up to four independent 4K displays, making it ideal for immersive video walls, dynamic advertising displays, and informative digital boards. Engage your audience with crisp, clear visuals that leave a lasting impression. This digital signage media player ensures your message is always seen in the best possible light.
Uninterrupted Connectivity for Critical Applications
Stay connected with a reliable 2.5GbE LAN port and the option to integrate 5G mobile network connectivity via the M.2 B-Key slot. Ensure your digital signage remains online and updated, even in locations with limited wired network access. Rely on this robust digital signage media player for consistent performance.
Built for Demanding Environments
The D613-U1 is designed to operate reliably in a wide range of environments, with an operating temperature range of 0°C to 45°C. Its fanless design ensures silent operation and reduces the risk of dust ingress, making it perfect for use in retail spaces, transportation hubs, and industrial settings. This digital signage player is built to last.
Flexible Storage and Expansion
Accommodate large media files and demanding applications with support for up to 96GB of DDR5 memory and flexible storage options. The M.2 E-Key slot allows for easy integration of Wi-Fi and Bluetooth connectivity, providing additional flexibility for wireless content delivery and device management. Giada’s digital signage media player offers unparalleled flexibility.
FEATURES:

Intel® Core™ i5-1335U processor

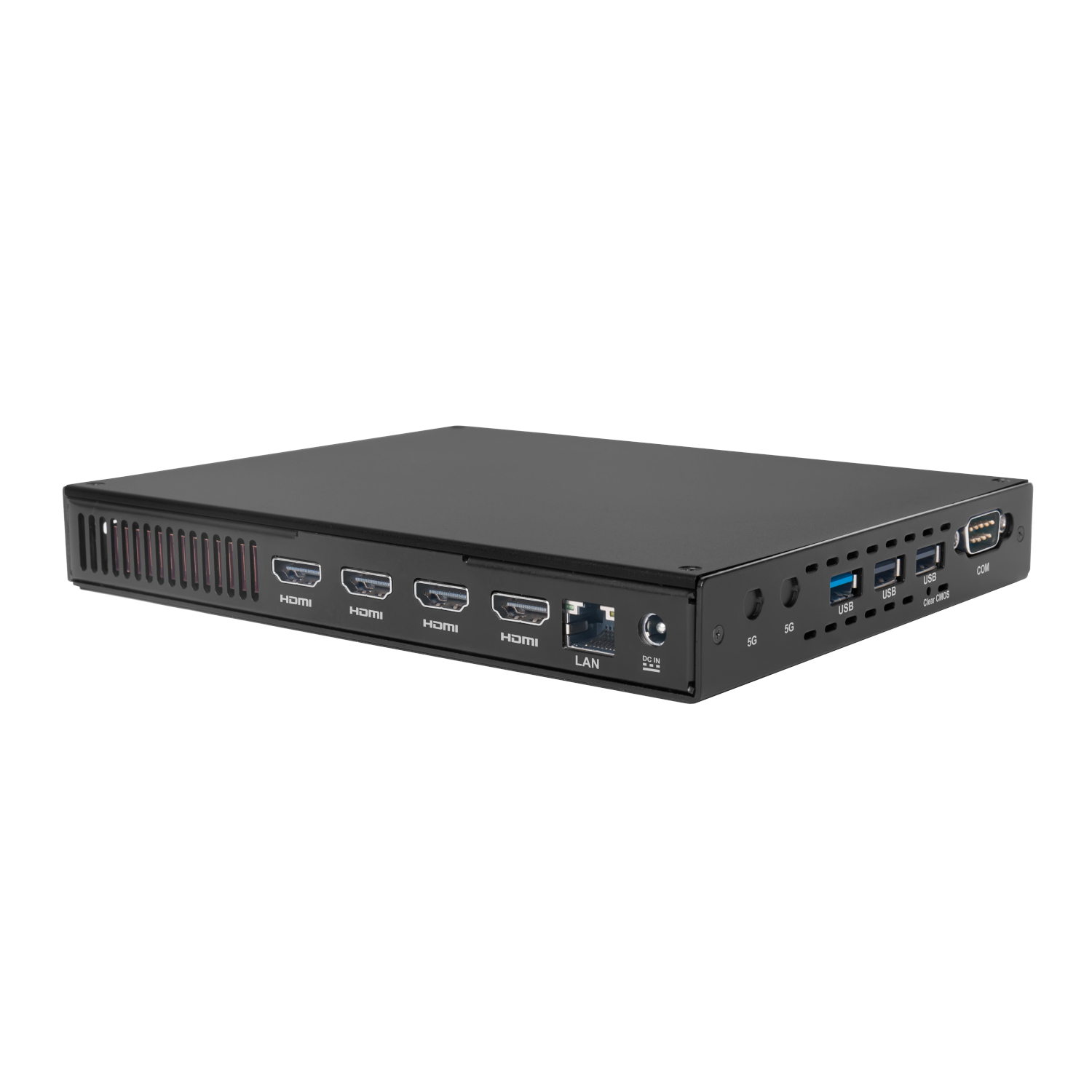

4 x HDMI, Supporting 4K Display
2 x SO-DIMM DDR5 Memory, Up to 96GB
1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
Supporting RJ45, Wi-Fi 6 (CNVi), and 3G/4G/5G Ethernet Access

SPECIFICATIONS:

Processor:

CPU: Intel® Core™ i5-1335U processor
Chipset: SoC
Total Cores: 10 Cores
Threads: 12
Base Power: 15w

Memory:

Type: DDR5-5200MHz
Socket: 2 x SO-DIMM
Max Size: Up to 96GB

Graphics:

GPU: Intel® IRIS® X Graphics
Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
HDMI: 4 x HDMI (Max.4096 x 2304 @60Hz)

Network:

Controller: 1 x Intel I226-LM controller
Interface: 1 x 2.5 GbE RJ45
Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G | 1 x SIM Slot
Wi-Fi/BT:  1 x E-Key M.2(2230) for Wi-Fi/BT | Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)

I/O:

USB: 1 x USB Type-C3.2 Gen2 | 1 x USB3.2 Gen2, 2 x USB2.0
Serial Port: 1 x RS232
Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
Button: 1 x Power on, 1 x CLR-CMOS
Antenna: 2 x Connector for Wi-Fi/BT | 2 x Connector for 5G (Reserved)

Storage:

1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD

JAHC Tech:

WatchDog Timer: 0~255 Second Time Out Support
Auto Power On: Power Activated Automatically Start

Operation System:

Windows 11 (64bit)
Linux Ubuntu (64bit)
ChromeOS Flex

Power:

Power Type: DC-IN
Input Voltage: 19 V/4.74 A

Environment:

Operating Temperature: 0C~45C (32°F~113°F) @0.7m/s Air Flow
Relative Humidity: 10~90% @ 45℃ (non-condensing)
Certification: CE, FCC Class B, UKCA

Construction: Metal
Colour: Black
Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

Giada D613-U1 Intel Core i5-1335U High-end Digital Signage Player – Black x1
Wi-Fi Antenna x2
AC Power Cable x1
AC Power Adapter x1
User Manual x1

Please note: This Giada unit does not come with storage or memory which has to be purchased separately.
