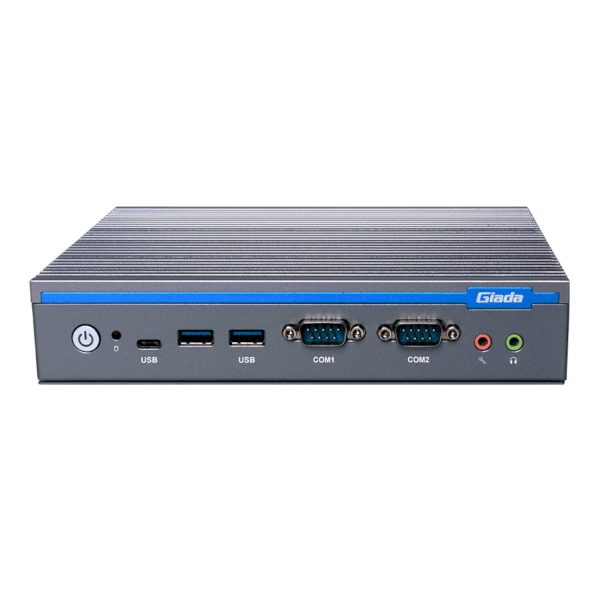

Giada D613-I i3-1315U Raptor Lake Fanless Signage Player

The Giada DF613 Fanless High-Performance PC is a compact, industrial-grade computing solution engineered for demanding digital signage and edge computing environments. Powered by Intel’s 13th Gen processors, this robust system delivers high-efficiency performance with ultra-low power consumption. It is ideal for mission-critical deployments in retail, transportation, and smart city infrastructures.
Designed to operate silently, the Giada DF613 Fanless High-Performance system features a fanless thermal architecture that ensures consistent and reliable performance in noise-sensitive or dust-prone environments. Support for 8K resolution and quad display output enables vivid, immersive visual experiences for content-driven applications, including multi-screen digital signage and real-time analytics.
Connectivity is optimised with dual LAN ports, multiple USB and COM interfaces, and a high-speed M.2 slot for flexible expansion. TPM 2.0 support and industrial-grade stability ensure the Giada DF613 Fanless High-Performance PC meets enterprise-level security and reliability standards.
Whether deployed in harsh industrial settings or modern commercial spaces, the Giada DF613 Fanless High-Performance system is purpose-built for uninterrupted 24/7 operation, offering superior longevity, energy efficiency, and deployment versatility.
FEATURES:

Fanless, ultra-silent design
Intel® 13th gen CPU support
Supports up to 8K display ultra-high-definition visuals
Quad display output for enhanced content delivery and multi-screen setup
Dual LAN with teaming ensures stable, high-throughput networking
Rich I/O interface: HDMI, DisplayPort, USB, COM ports, and M.2 expansion
TPM 2.0 security module enables enterprise-grade data security and hardware-based encryption
Industrial-grade reliability built for 24/7 operation in commercial, industrial, and embedded system environments
Compact, slimline form factor space-saving chassis facilitates easy integration into space-constrained installations

SPECIFICATIONS:

CPU
CPU: Intel® CoreTM i3-1315U processor
E-Core Frequency: 3.30 GHz
P-Core Frequency: 4.50 GHz
Chipset: SoC
Processing Units: 6 Cores
Base Power: 15 W /15 W
Network
Network Controller:
1 x Intel i219-LM Gigabit Ethernet
1 x Realtek RTL8111H Gigabit Ethernet
Ethernet Interface: 2 x RJ45
Wi-Fi/BT:
1 x E-Key M.2 (2230) for Wi-Fi/BT
Support Wi-Fi 5/6/6E (CNVi)
Mobile Network:
1 x B-Key M.2 (3042) for 3G/4G,
1 x SIM Slot
System
System Memory: Up to 64 GB, 2 x SO-DIMM DDR4-3200 MHz
Storage: 1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
Watchdog Timer :Yes
Auto Power On: Yes
RTC: Set up independently every day, a week as a cycle
Power Requirement: DC-IN, 19 V/4.74 A
Dimensions: 20 x 15 x 4 cm
Construction: Metal, Grey
Operating System: Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
Certifications: CE, FCC Class B, UKCA
Humidity: 95% @ 45°C (non-condensing)
Display
GPU: Intel® UHD Graphics (Core i3)
Graphic Engine:

DirectX 12.1, OpenGL 4.6, Opencl 3.0,
8K 60fps 12b 4:2:0 HEVC/VP9/SCC

Display Interface:

1 x DP (Max.7680 x 4320 @60 Hz)
2 x HDMI (Max.4096 x 2304 @60 Hz)

# of Displays Supported: 3
I/O interface
USB

1 x USB Type-C,
4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0

Serial Port:1 x RS232, 1 x RS232/422/485
Audio: 1 x MIC-IN, 1 x AUDIO-OUT
Button: 1 x Power on, 1 x CLR-CMOS
Antenna

2 x Connector for Wi-Fi/BT
2 x Connector for 3G/4G (Reserved)

Dimension: 20 x 15 x 4 cm

WHAT’S IN THE BOX:

Giada D613-I i3-1315U Raptor Lake Fanless signage Player x1
