Cudy AX3000 Wi-Fi 6 Mesh Kit 3 Pack – White

Description

Description

The Cudy AX3000 Mesh Wi-Fi 6 System is a powerful networking solution designed to meet the demands of modern homes with high-bandwidth activities like 4K streaming, online gaming, and smart home integration. Featuring five advanced antennas and Wi-Fi 6 technology, it delivers blazing speeds of up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz, ensuring seamless connectivity across your home. With coverage options for spaces up to 6500 sq ft using a three-pack system, it’s the perfect choice for large households or multi-level homes with demanding internet needs.
Advanced parental controls allow you to manage online activity by setting time limits and blocking inappropriate websites, ensuring a safe browsing environment for kids. Security is enhanced with WPA3 encryption, protecting your network from brute-force attacks, while a Guest Network feature keeps your personal devices separated from visitors’ devices for an added layer of privacy. Additionally, the system supports six built-in VPN protocols, offering compatibility with over 50 VPN providers and enabling you to host your own VPN server for secure remote access.
With a 1.3 GHz dual-core CPU and efficient system tools, the Cudy AX3000 ensures reliable performance and easy network management. The intuitive system panel provides clear insights into network status, while the built-in diagnostic tool simplifies troubleshooting. Whether you’re managing over 200 connected devices, running simultaneous streams, or maintaining a secure and private network, the Cudy AX3000 Mesh Wi-Fi 6 System offers a dependable and versatile solution tailored for today’s connected lifestyle.
FEATURES:

1.3 GHz Dual-Core CPU
4-Stream Dual-Band Wi-Fi 6
2402Mbps + 574Mbps Wi-Fi 1
200 Connected Devices 2
Fast Roaming
Cudy Mesh, VPN Server and Client
Multi-Band Simultaneous Backhaul
Cudy App, Cloud Control
Contains 3 x Mesh Units

SPECIFICATIONS:

Chipset: MT7981
CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53
Flash/ROM: 128 MB (1Gbit) NAND
DDR/RAM: 256 MB (2Gbit) DDR3
5.0GHz Wi-Fi Speed: 2402Mbps
2.4GHz Wi-Fi Speed: 574Mbps
5.0GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 5× Internal
5.0GHz Antenna Gain Max: 5.1dBi
2.4GHz Antenna Gain Max: 4.2dBi
FEM or PA/LNA: 5 GHz: 3× Internal | 2.4 GHz: 2× Internal
Beamforming: True
Range Performance: Max: 220 m (722 ft) Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

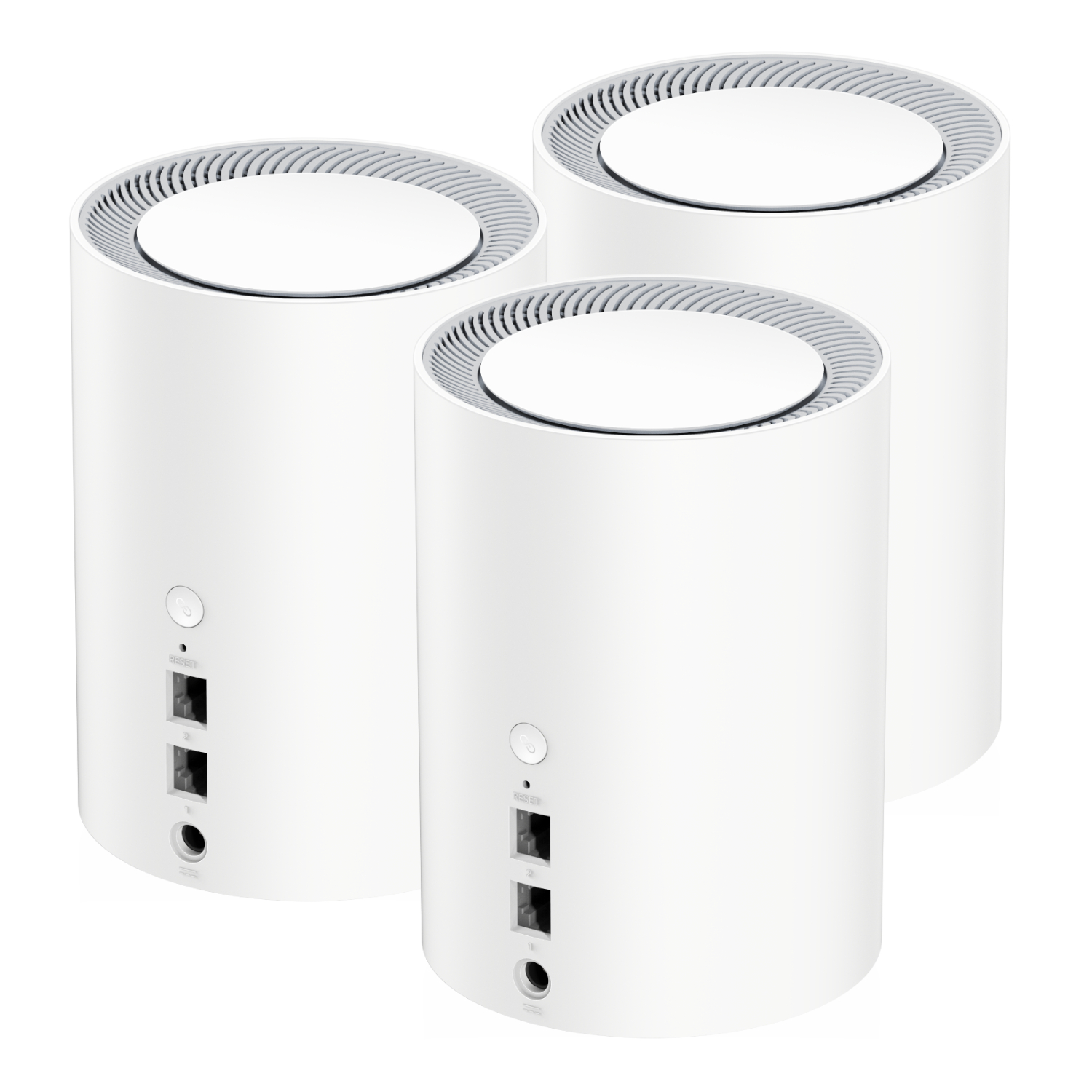

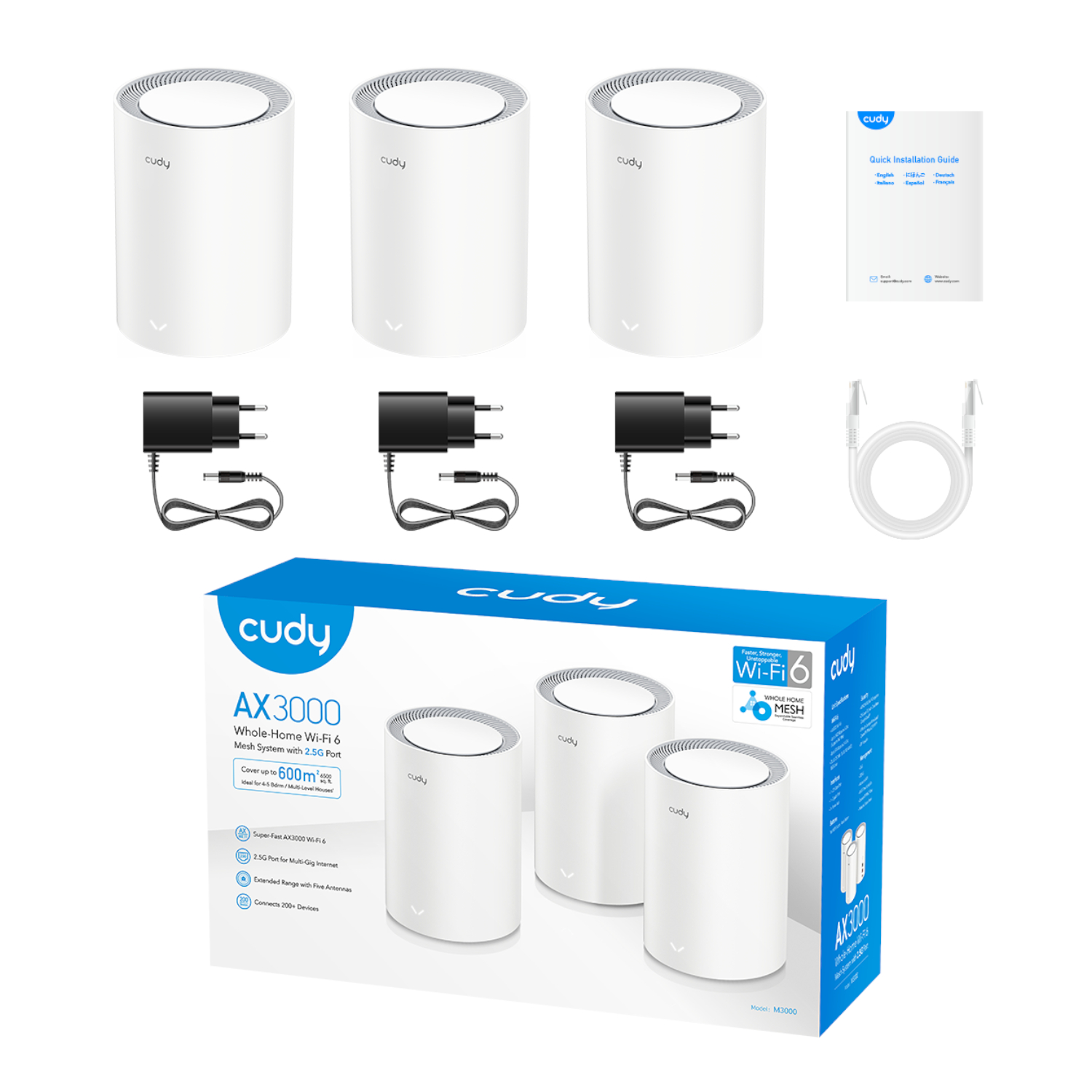

Wall Performance: Two wooden walls with thickness < 10 cm (4”) | One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”) Multi-Pack Indoor Coverage: 2 Pack: 400 m² (4300 sq ft) 3 Pack: 600 m² (6500 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. Interfaces 2.5G RJ45 Ports: 1 Gigabit RJ45 Ports: 1 Ethernet Notes: The 2.5G port is WAN port, the Gigabit port is LAN port LED: System | Speed/Link/ACT of Ethernet Port Physical Buttons: WPS Button | Reset Button Power Input: DC Jack Power Methods: DC DC: 12V 1A Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC | Output: 12V 1A DC Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing Certifications: FCC, CE Product Dimensions: 11 x 15.4 cm Product Weight: 360g WHAT’S IN THE BOX: Cudy AX3000 Mesh Wi-Fi 6 System – White x3 Power Adapter x3 Ethernet Cable x1 Installation Guide x1
