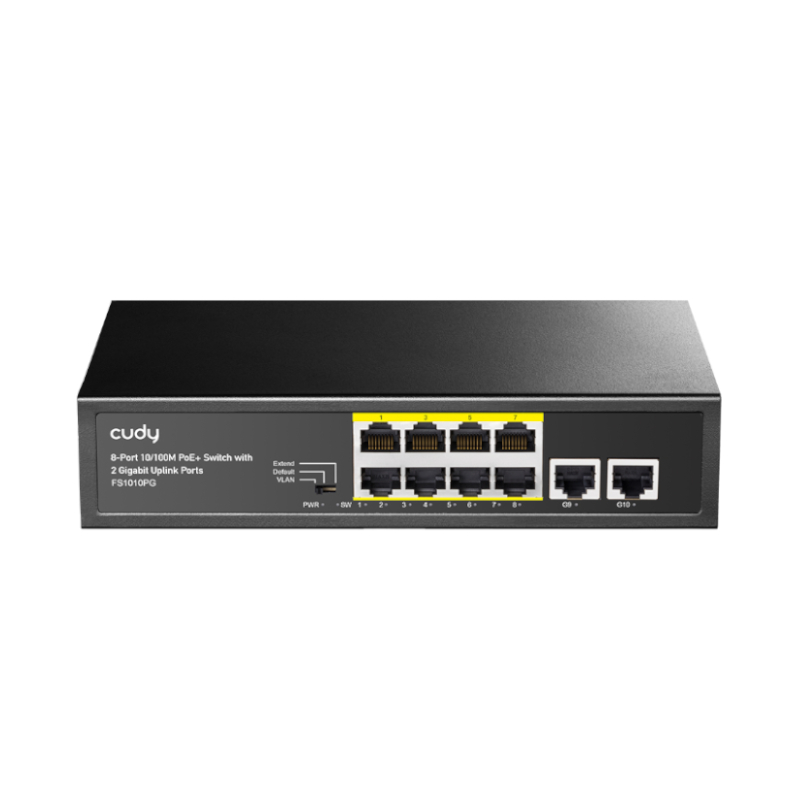

Cudy 10-Port Unmanaged PoE+ Switch

The Cudy FS1010P 10-Port 10/100M PoE+ Switch makes it easy to manage your home or office network. It ensures safe operation for non-standard PoE devices while conforming to the IEEE802.3af/at standards, with a total PoE power capacity of 120 W and the ability to deliver up to 30 W of power to a single PoE port.
The PoE watchdog feature monitors the connectivity status of remote PoE devices in real-time. If an issue with a remote PoE device is detected, the PoE switch immediately performs a restart to restore normal operation.
It’s a simple, plug-and-play solution that’s really easy to use. Its fanless design ensures silent operation, and the long-lasting metal case provides longevity and excellent heat dissipation, making it suited for a variety of situations.
The pin assignment is as follows: 1/2 (positive), 3/6 (negative), making it compatible with a wide range of devices. It works well with IP cameras in both the home and workplace, VoIP phones for professional conferences, and WiFi access points for office and commercial applications.
FEATURES:

Support IEEE802.3at and IEEE802.3af Standard
120W PoE power output, up to 32W for one PoE port
Support IEEE802.3x full duplex and half duplex flow control
Support VLAN and CCTV Function
Panel lights to monitor working state and help fault analysis
Perfect security mechanism
Line-speed forwarding intelligent identification

SPECIFICATIONS:

PoE standard: IEEE802.3af/at
Interface: 10*10/100Mbps The RJ45 port through consultation
Key function: CCTV&VLAN
PoE port: 1~8 port
PoE Total: 120W
Power supply: 120W
RJ45 PoE power supply: Mode A, Anode1/2, Cathode3/6
PoE output-port: Max 32W
Indicator: PWR, LNK/ACT, PoE
Network media:

10BASE-T: UTP category 3, 4, 5 cable(≤100m)
100BASE-TX: UTP category 5, 5e cable(≤100m)；

MAC Address Table: 8K, Automatic study, automatic updates
Jumbo frame: 1528Bytes
Packet Neck Scarfer: 2M bit
Transfer Mode: Store-and-forward
Packet forwarding rate: 1.48Mpps
Bandwidth: 2M bit
Fan: Fanless

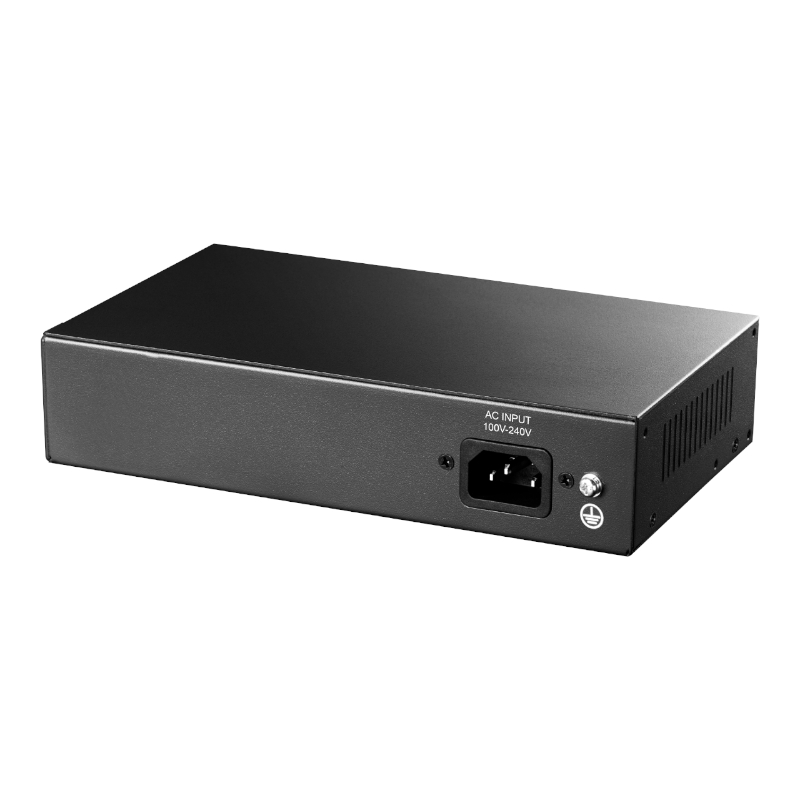

Mains Input: 100~240V AC, 50/60Hz
Surge Protection: ±4KV
MTBF: >50000 hour
Electrostatic standard: Contact 4KV, air 6KV
Colour: Grey
Product Dimensions: 20 x 18 x 4.4 cm
Product Weight: 1000g

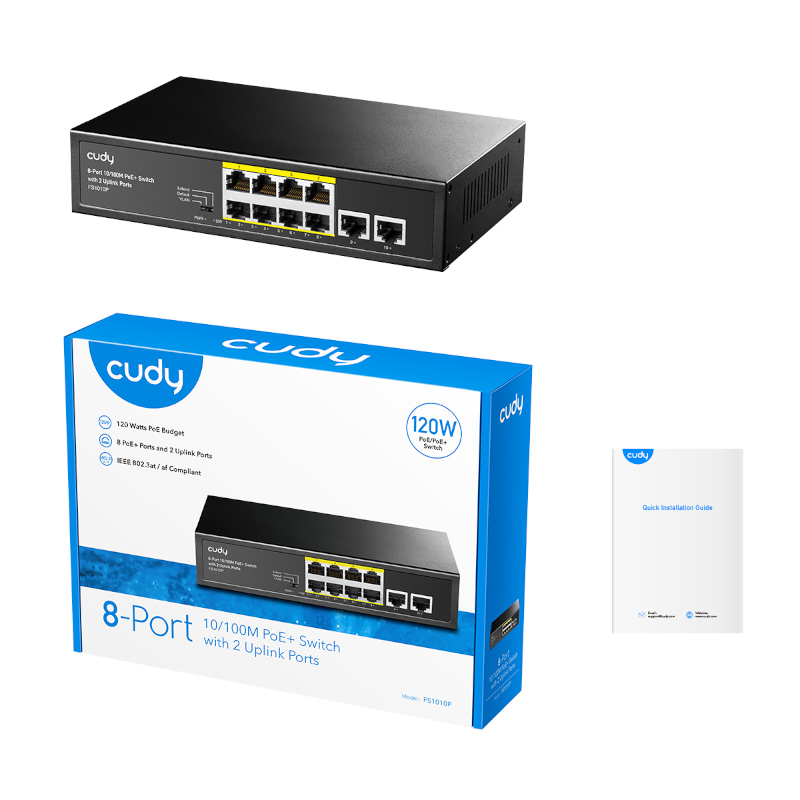

WHAT’S IN THE BOX:

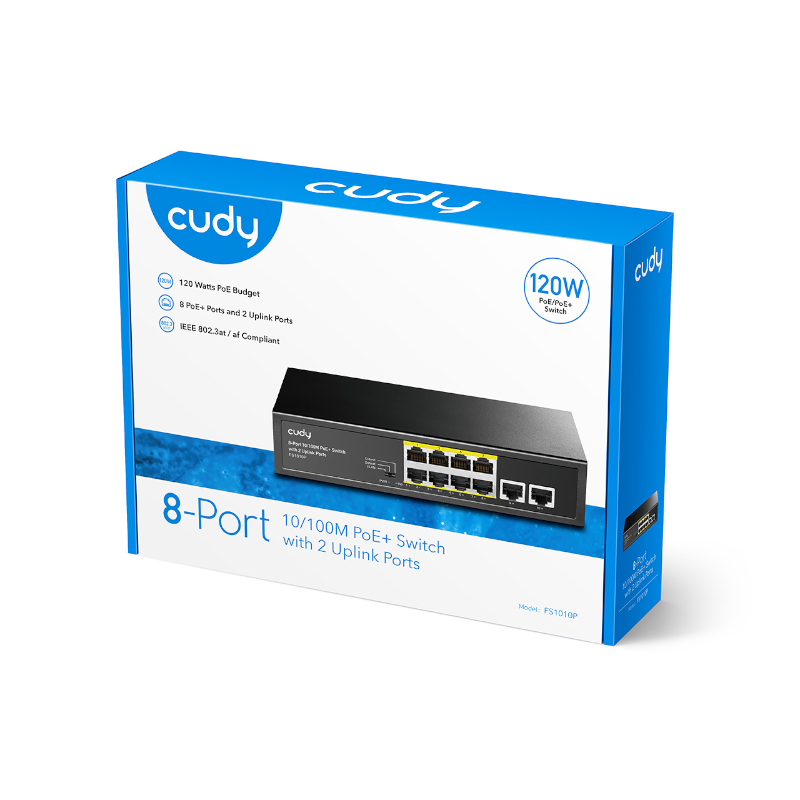

Cudy FS1010P 10-Port 10/100M PoE+ Switch – Grey x1
Power Adapter x1
