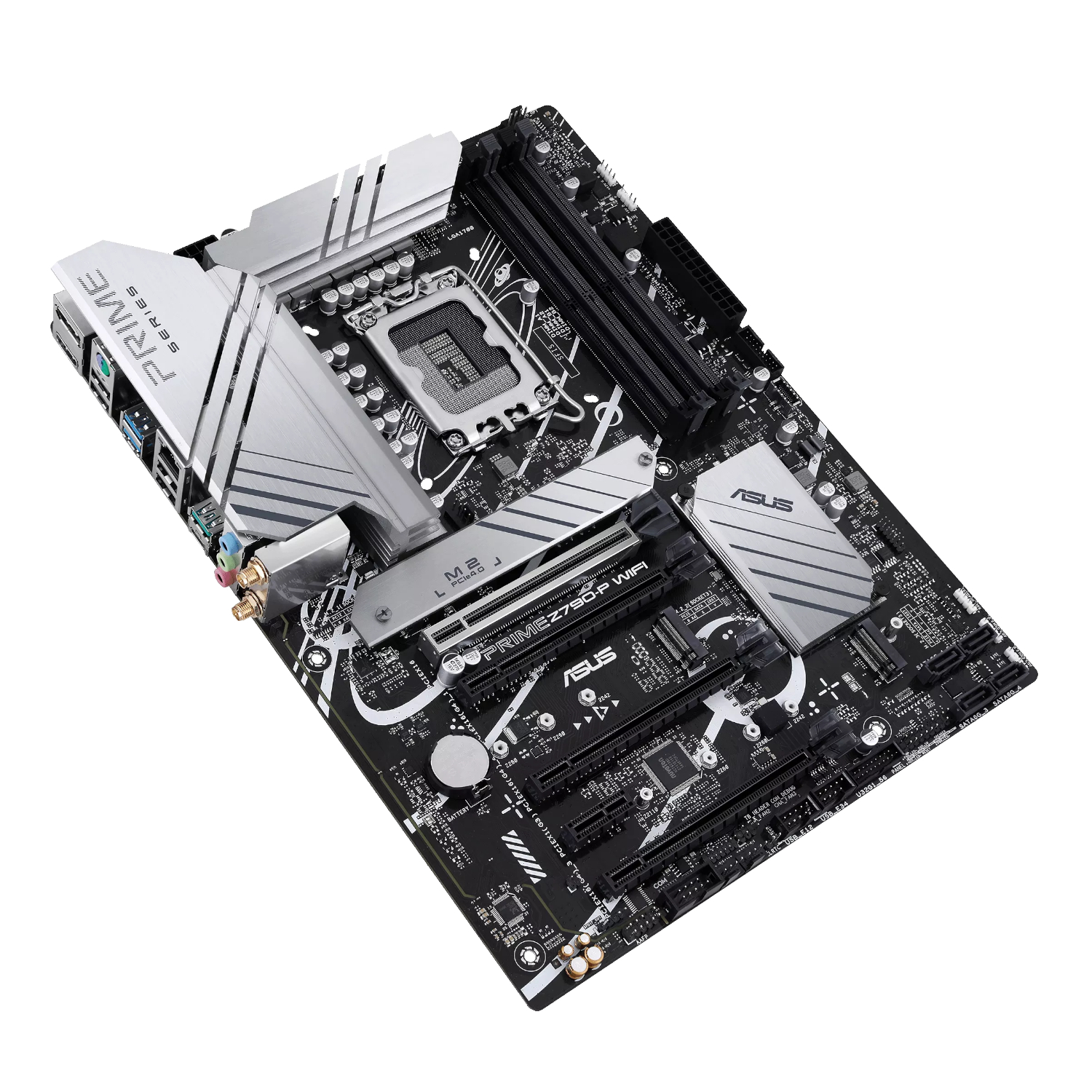

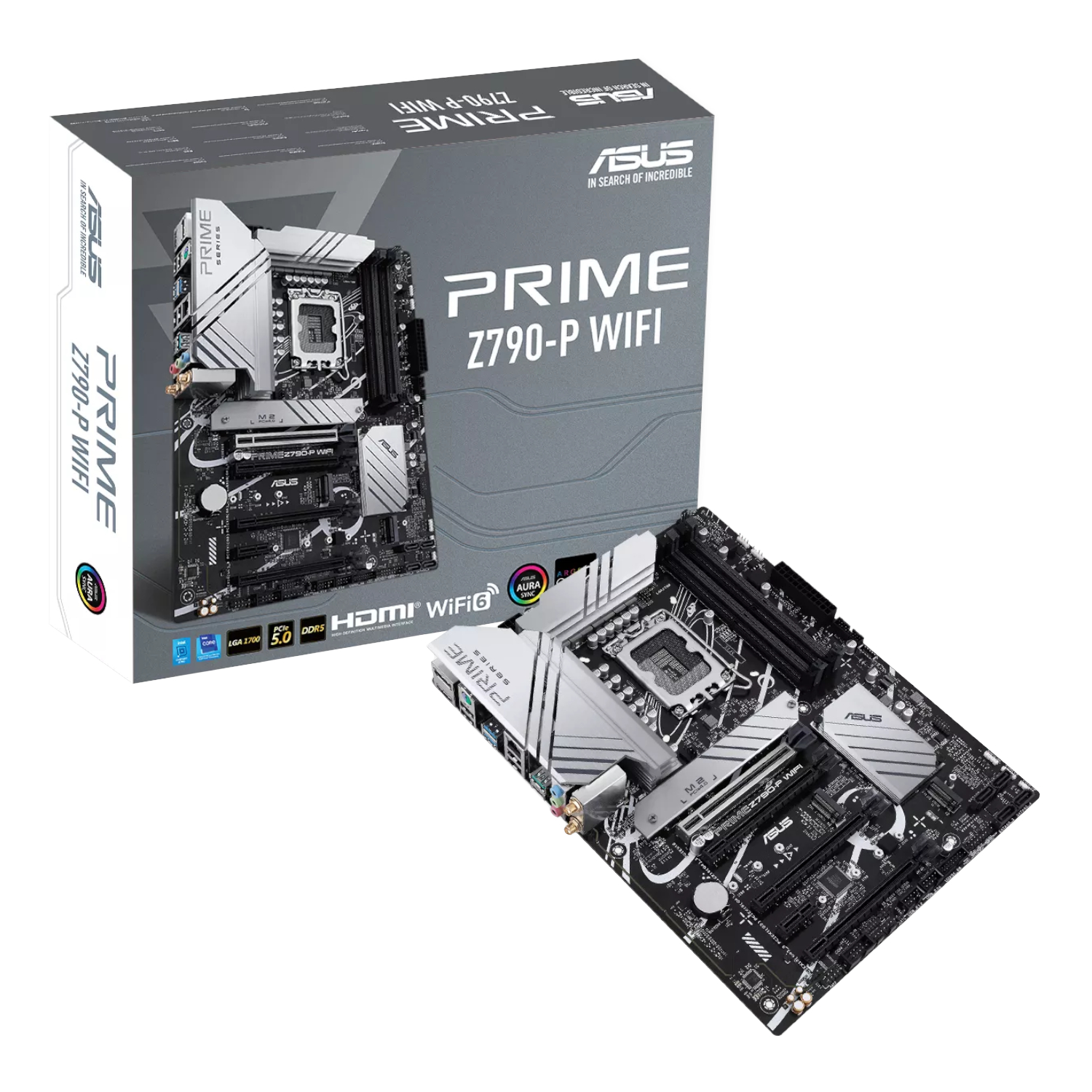

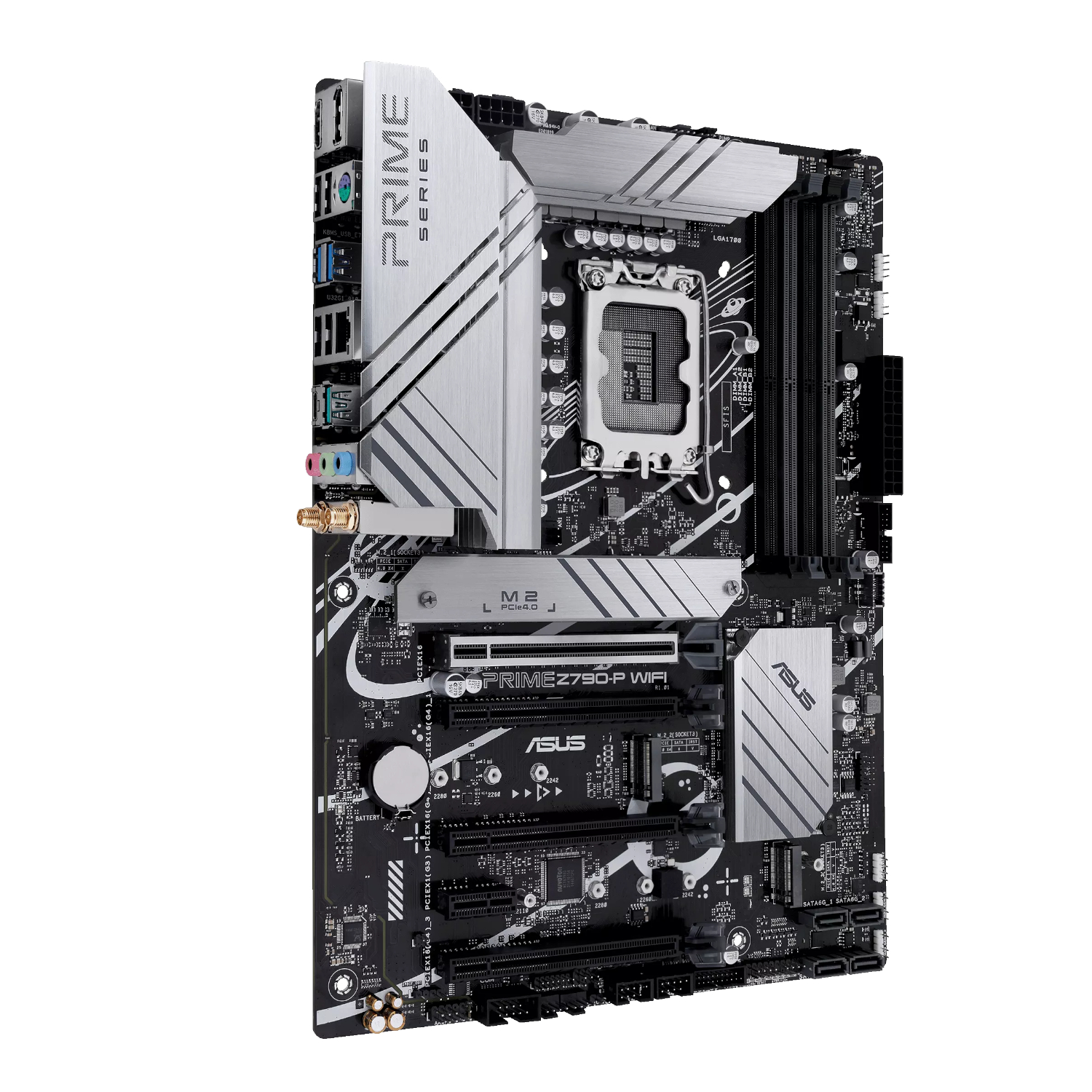

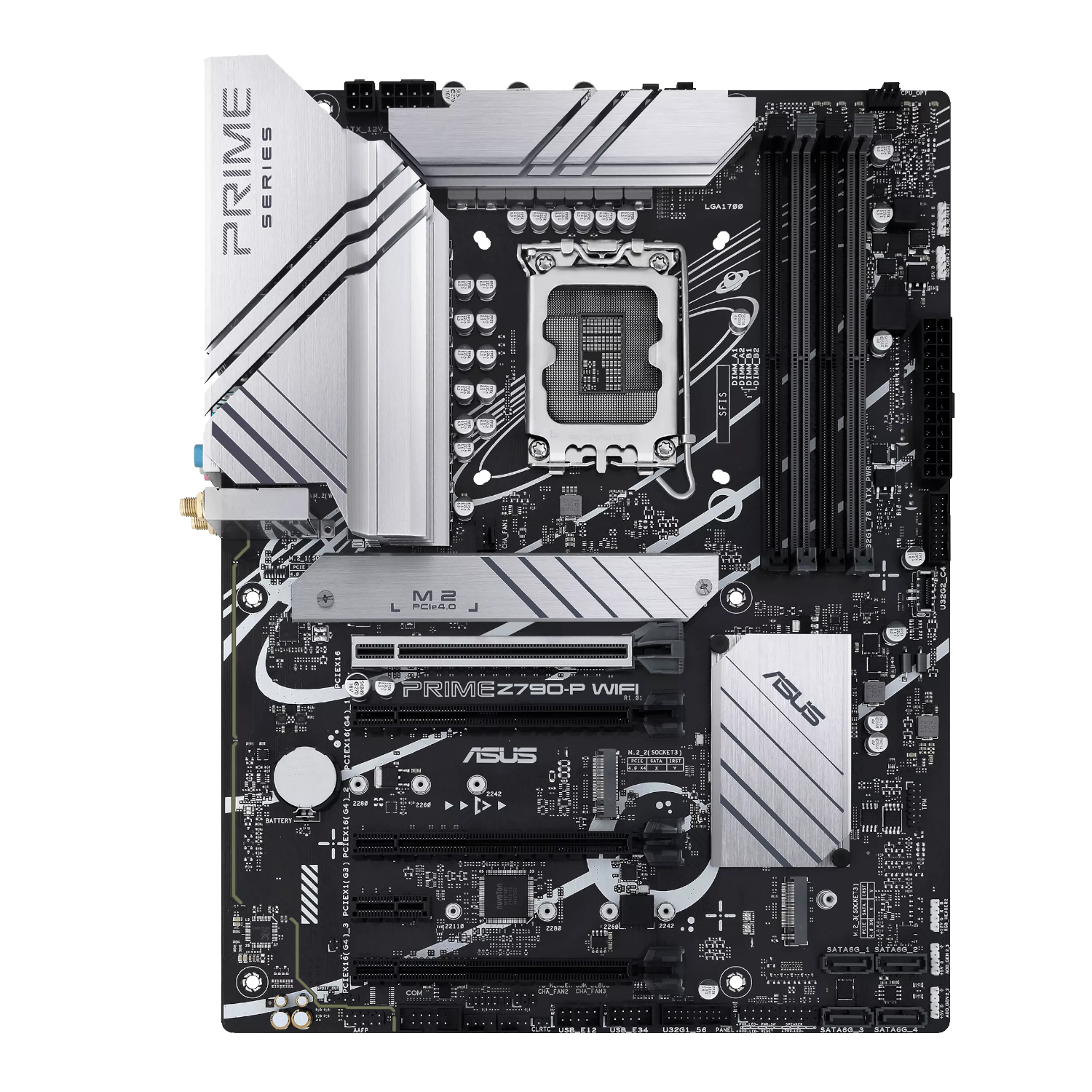

Asus PRIME Z790-P WIFI ATX Gaming Motherboard

Description

Engineered for productivity and next-gen gaming, the ASUS PRIME Z790-P WIFI ATX Motherboard is built to harness the full capabilities of Intel®’s 12th, 13th, and 14th Gen processors. Designed with the latest Intel® LGA1700 socket and the high-performance Z790 chipset, this motherboard combines superior power delivery with intelligent control to support demanding multitasking, high-speed gaming, and overclocking. With a 14+1 DrMOS power stage design, 6-layer PCB, and ProCool connectors, you can expect stable voltage and efficient thermal performance under intensive workloads.
The PRIME Z790-P WIFI supports ultra-fast DDR5 memory up to 7200+ MT/s (OC), offering exceptional bandwidth for modern computing tasks. ASUS OptiMem II and Enhanced Memory Profile II (AEMP II) technologies ensure better signal integrity and memory stability, ideal for both professional content creators and competitive gamers. For high-speed data and application loading, the board features three PCIe 4.0 M.2 slots and four SATA 6G ports—perfect for RAID setups or lightning-fast NVMe SSDs. Whether you’re rendering 3D content or launching AAA titles, this board delivers blazing speed and responsiveness.
Stay connected with Intel® Wi-Fi 6, Realtek 2.5Gb Ethernet, and an impressive array of high-speed USB ports, including rear USB 3.2 Gen 2×2 Type-C® and front USB 3.2 Gen 2 Type-C® for maximum data transfer flexibility. The PRIME Z790-P WIFI also includes Thunderbolt™ (USB4®) header support, enabling compatibility with next-gen peripherals and external displays. With PCIe 5.0 x16 expansion, you’ll have access to the latest GPUs and devices at double the bandwidth of PCIe 4.0—offering future-proof performance for upcoming upgrades.
Optimized for both aesthetics and thermal control, the motherboard features large VRM heatsinks, a dedicated PCH heatsink, flexible M.2 cooling, and hybrid fan headers—all managed through Fan Xpert 4 with AI Cooling II for automatic heat regulation. Aura Sync compatibility via onboard RGB headers allows for personalized lighting, while Q-Design innovations simplify the building process for DIY enthusiasts. Whether you’re building your first PC or upgrading a pro-level rig, the ASUS PRIME Z790-P WIFI offers premium features, broad compatibility, and all the tools you need for a high-performance Windows® 11 gaming or productivity setup.
FEATURES:

Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors
Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: DDR5 memory, Intel® Wi-Fi 6, PCIe® 5.0, Realtek 2.5Gb Ethernet
High-speed USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) header support, 3 PCIe® 4.0 M.2
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Comprehensive cooling: Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II

SPECIFICATIONS:

Socket: LGA1700
CPU: Supports Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Chipset: Intel® Z790 Chipset
DDR5 Memory: Support DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory, Supports Intel® Extreme Memory Profile (XMP), OptiMem II
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 192
PCI-E 5.0 x16: 1
PCI-E 4.0 x16: 3
PCI-E 3.0 x1: 1
SATA 6G: 4
M.2 Slot: 3
LAN: Realtek 2.5Gb Ethernet
Wireless and Bluetooth: Wi-Fi 6, 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2

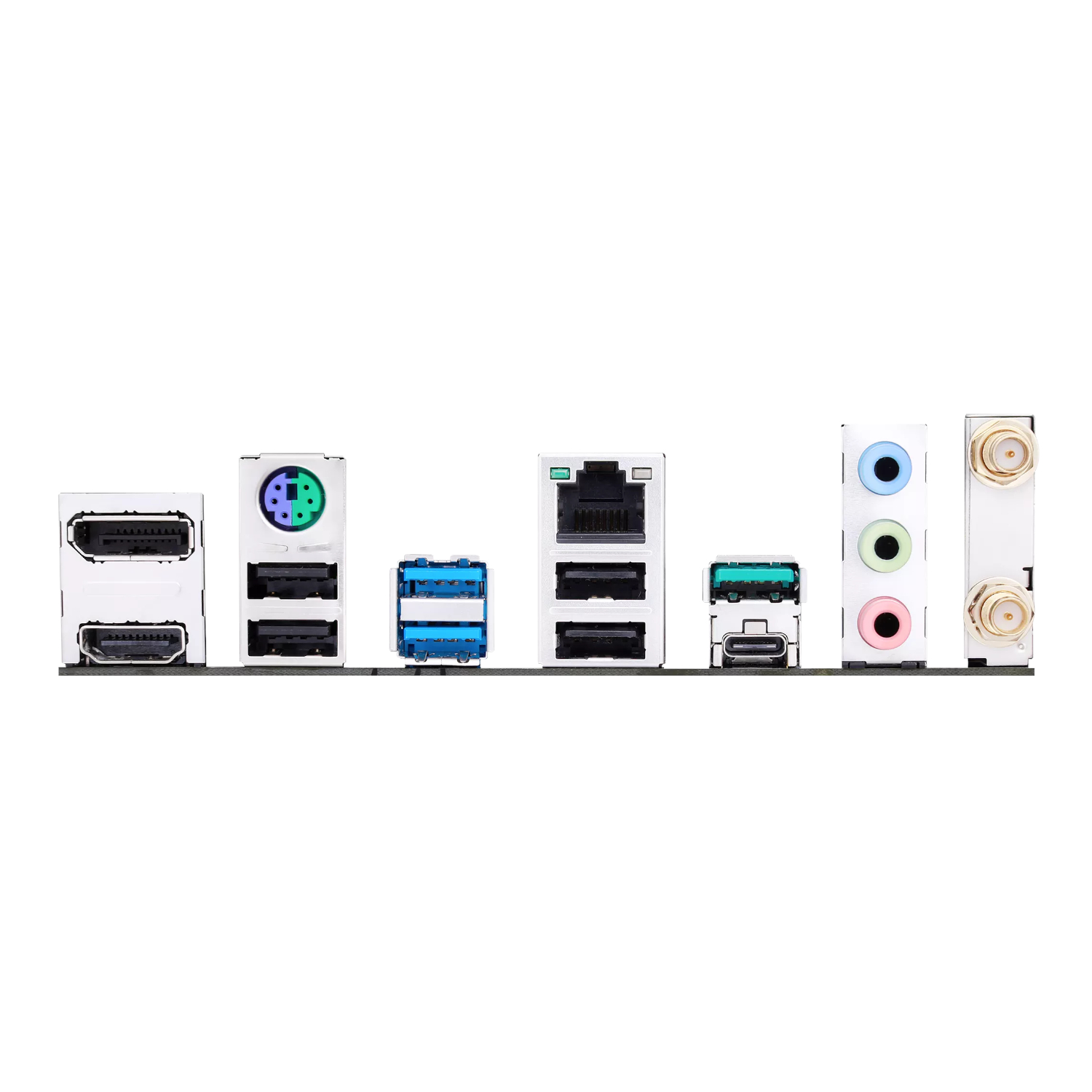

USB Ports Rear:

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

USB Ports Front:

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
HDMI: 1
DisplayPort: 1
DirectX: 12
Form Factor: ATX
Operating System: Support for Windows® 11, Windows® 10 64-bit

WHAT’S IN THE BOX:

Asus PRIME Z790-P WIFI ATX Gaming Motherboard – Black x1
SATA 6Gb/s Cables x2
Asus Wi-Fi Moving Antenna x1
I/O Shield x1
M.2 Rubber Package x1
Screw Packaging for M.2 SSD x2
User Guide x1
