Asus PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard

Description

Description

The Asus PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard is the ideal choice for PC DIY builders and users seeking a reliable, future-proof platform for their system. Designed to support the latest 12th, 13th, and 14th Generation Intel® Core™, Pentium® Gold, and Celeron® processors, this motherboard provides the performance and flexibility you need for both gaming and professional applications.
With a micro-ATX form factor, the Asus PRIME H610M-R DDR5 motherboard is compact, making it a perfect fit for small-to-medium PC builds while offering ample connectivity and expansion options. It features 2 x DIMM slots that support up to 64GB of DDR5 memory with speeds of up to 3200 MHz, ensuring smooth multitasking and responsiveness for demanding tasks.
Connectivity is a key strength of this motherboard, featuring 1 x PCIe 4.0 x16 slot for powerful graphics cards and 1 x M.2 slot supporting 32 Gbps data transfer speeds for fast storage. The motherboard also comes with 4 x SATA 6Gb/s ports, providing flexible storage expansion for your build.
Security and longevity are top priorities, with Asus’ 5X Protection III technology. This includes DIGI+ VRM for precise power delivery, LANGuard for network protection, and SafeSlot Core to reinforce the PCIe slots, making the ASUS PRIME H610M-R highly durable and reliable. The motherboard also offers robust network connectivity with Realtek 1Gb Ethernet and immersive audio with Realtek 7.1 Surround Sound High Definition Audio CODEC.
The Asus PRIME H610M-R DDR5 motherboard is designed to make system setup easy with an intuitive UEFI BIOS, EZ Flash 3, and CrashFree BIOS 3 for effortless BIOS updates and recovery.
Whether you’re building a gaming rig, workstation, or home PC, the Asus PRIME H610M-R offers a balanced combination of performance, connectivity, and protection, making it a perfect foundation for your next PC build.
FEATURES:

Supports Intel® 12th, 13th & 14th Gen CPUs for high-performance processing
Micro-ATX form factor for versatile, compact PC builds
2 x DIMM slots for up to 64GB of DDR5 memory (3200 MHz)
PCIe 4.0 x16 slot for powerful graphics cards and expansion
1 x M.2 slot for ultra-fast storage with 32 Gbps transfer speeds
4 x SATA 6Gb/s ports for ample storage options
Realtek 1Gb Ethernet for stable and fast network connectivity
Realtek 7.1 HD Audio CODEC for an immersive audio experience
5X Protection III including DIGI+ VRM and SafeSlot Core for enhanced durability
UEFI BIOS with EZ Flash 3 and CrashFree BIOS 3 for easy system management and updates

SPECIFICATIONS:

CPU
Intel® Socket LGA1700 for Intel® Core™ 12th, 14th & 13th Gen Processors,Pentium® Gold and Celeron® Processors
Supports up to Intel® 65W CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® H610 Chipset
Memory
2 x DIMM slots, max. 96GB, DDR5
5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphics
1 x DisplayPort

1 x VGA port

1 x HDMITM port
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

1 x PCIe 3.0 x1 slot

Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports

USB Ports
2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
1 x USB 20Gbps port(s) (1 x USB Type-C®)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-bit/192 kHz playback

Audio Features:

Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers

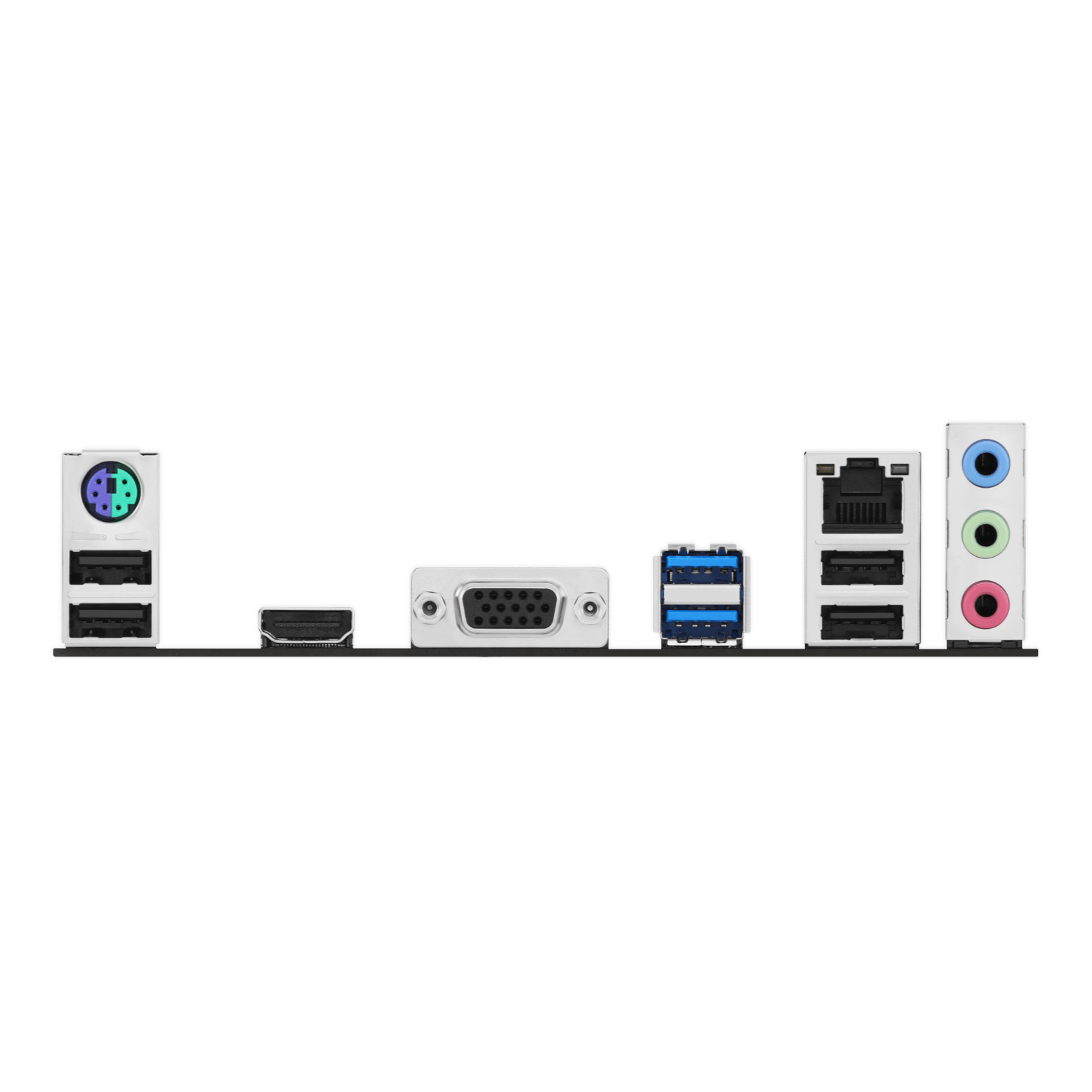

Back Panel I/O Ports
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling:

1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Storage-related:

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB:

1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports

Miscellaneous:

1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III

DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core
Stainless-Steel Back I/O

ASUS Q-Design

Q-DIMM
Q-Slot
Q-LED Core

ASUS Thermal Solution

Aluminium heatsink design

Software Features
ASUS Exclusive Software

Armoury Crate
AI Suite 3
EPU
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR

UEFI BIOS

ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX Form Factor
Dimensions: 22.6 cm x 19.5 cm

WHAT’S IN THE BOX:

Asus PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard x1
SATA 6Gb/s cables x2

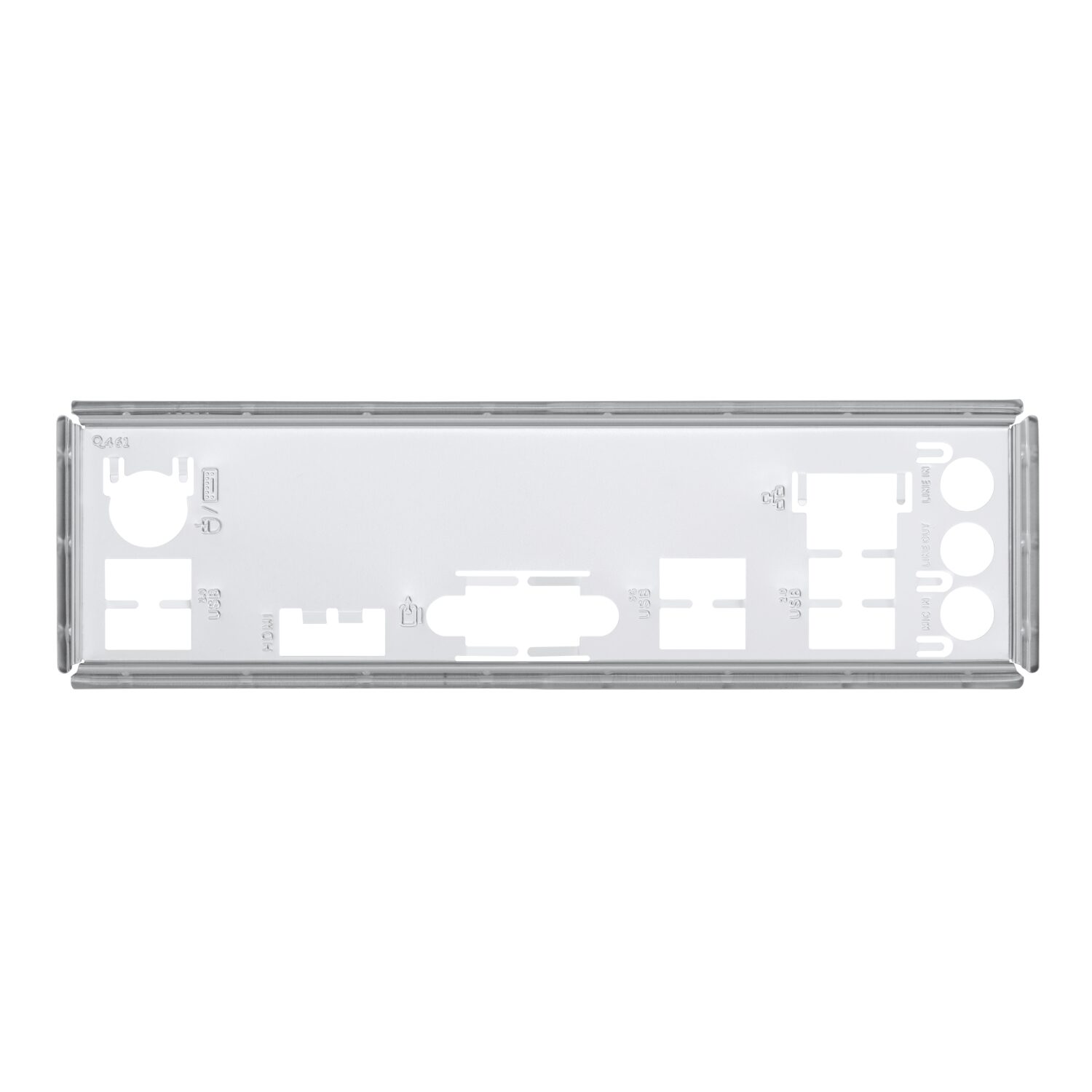

I/O Shield x1
M.2 ANCHOR x1
User guide x1
