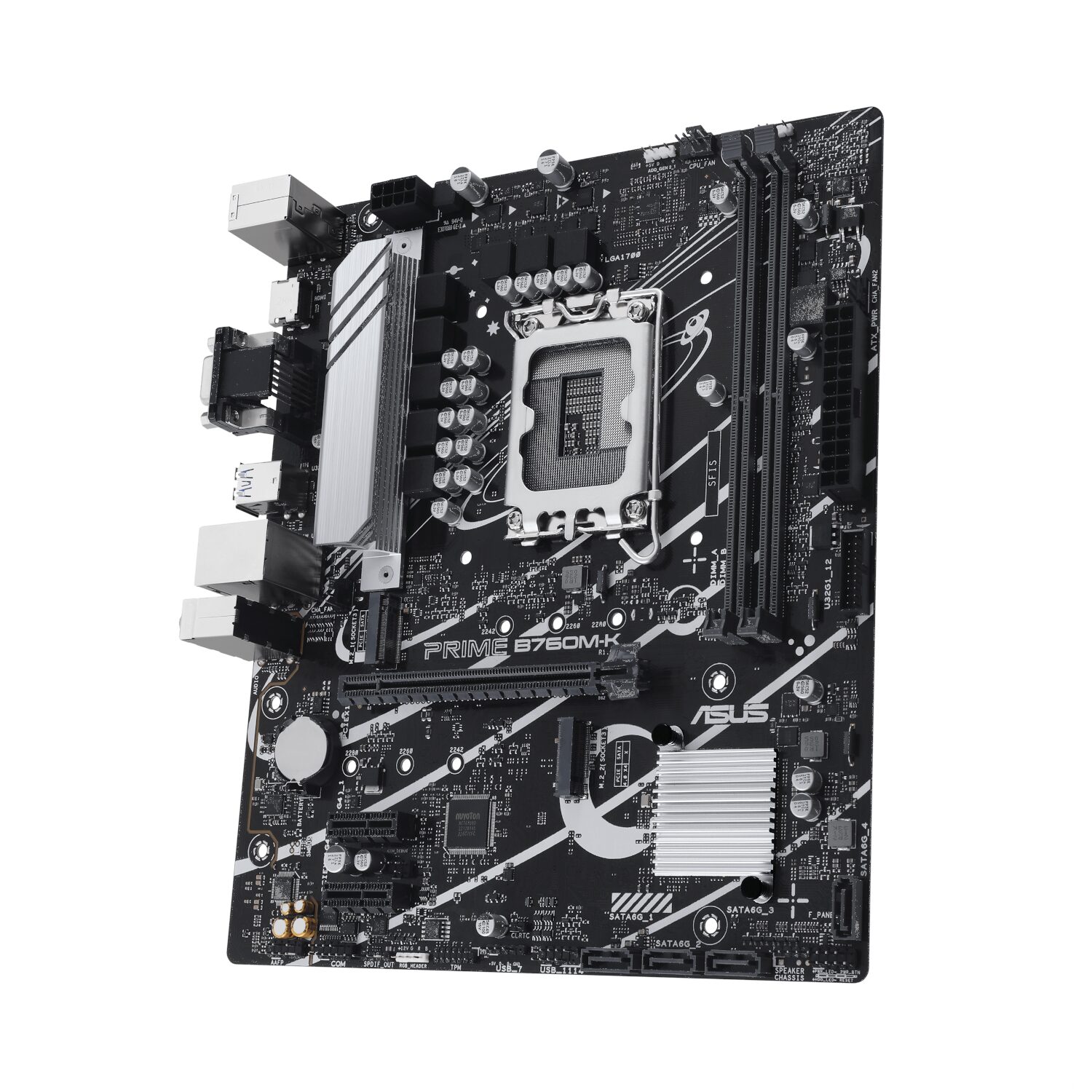

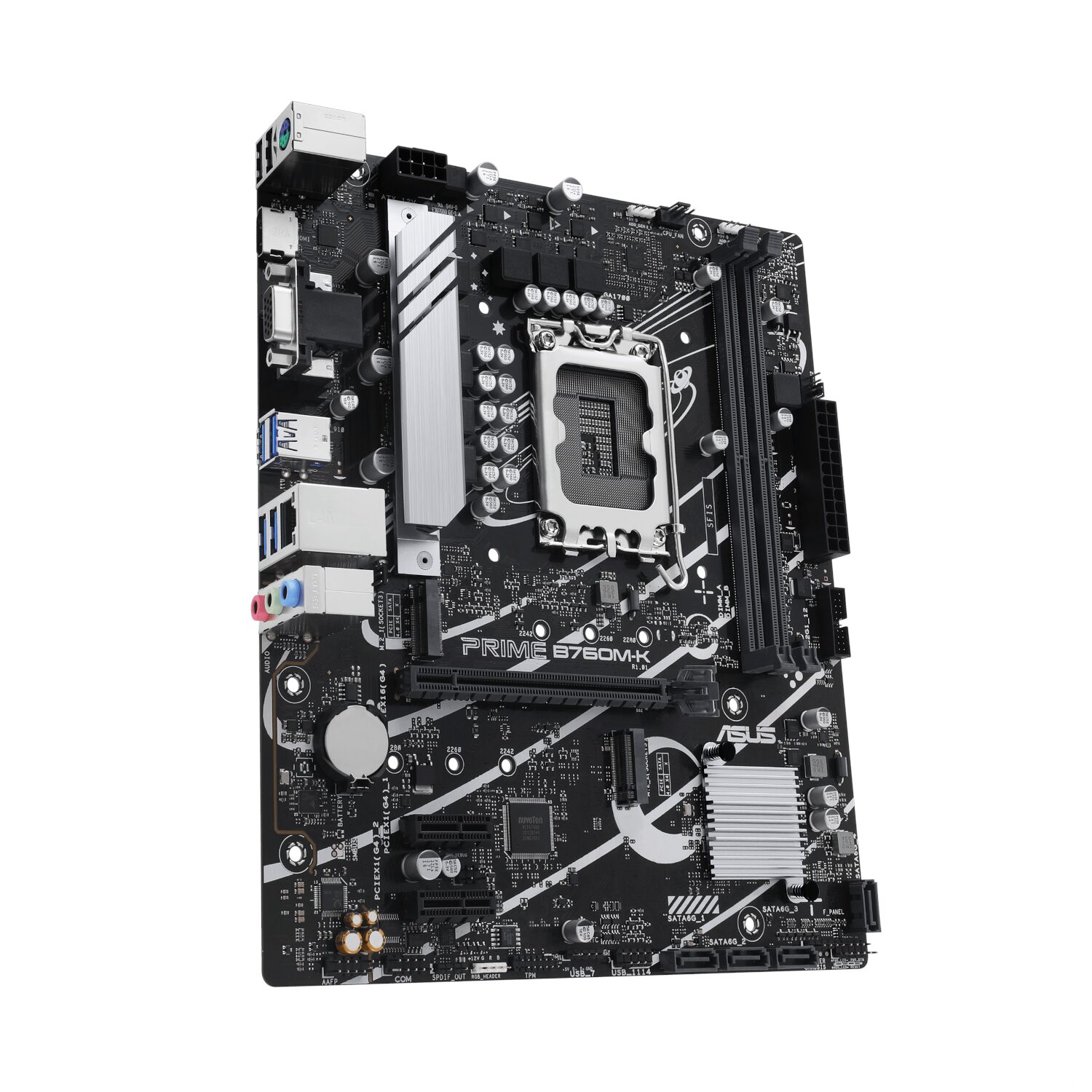

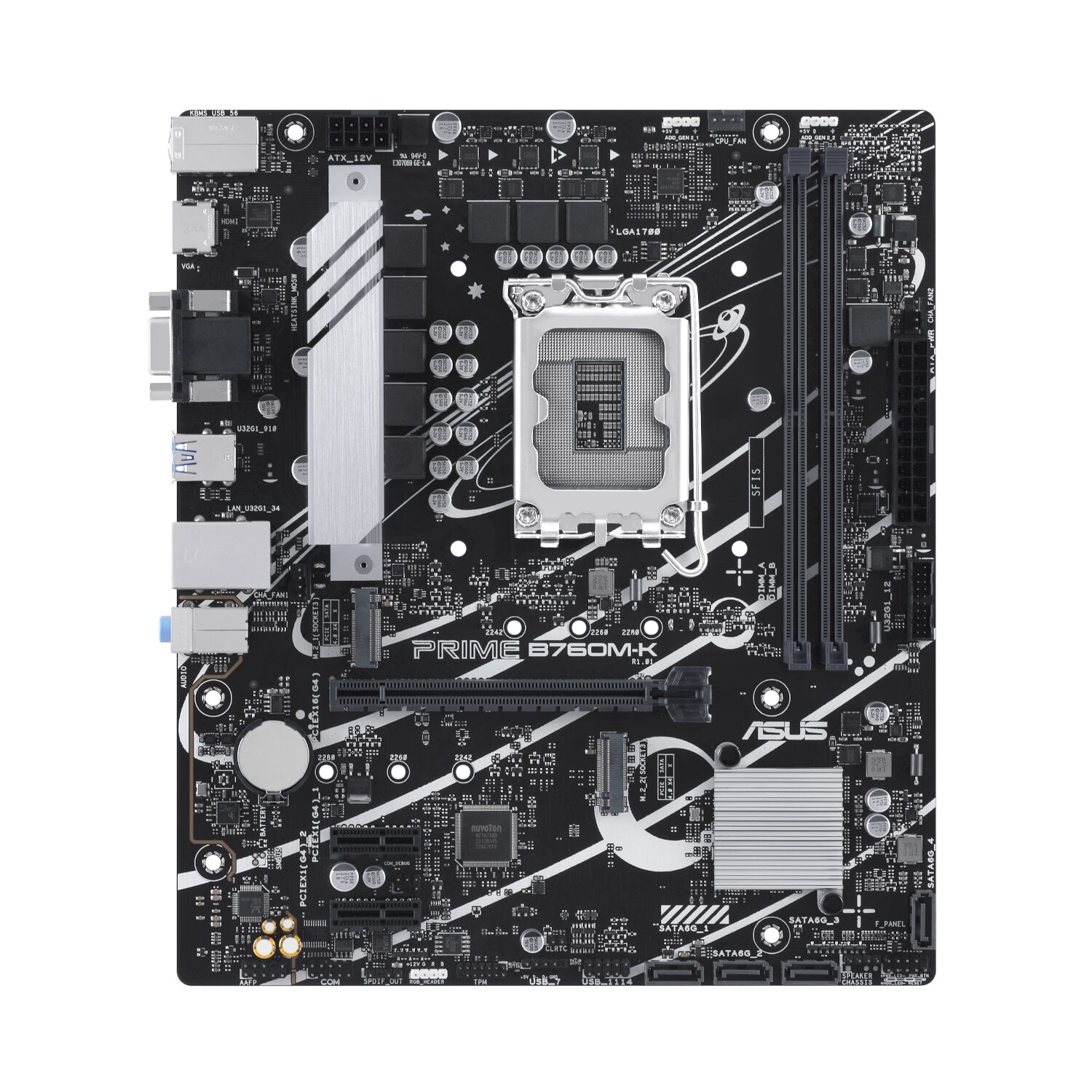

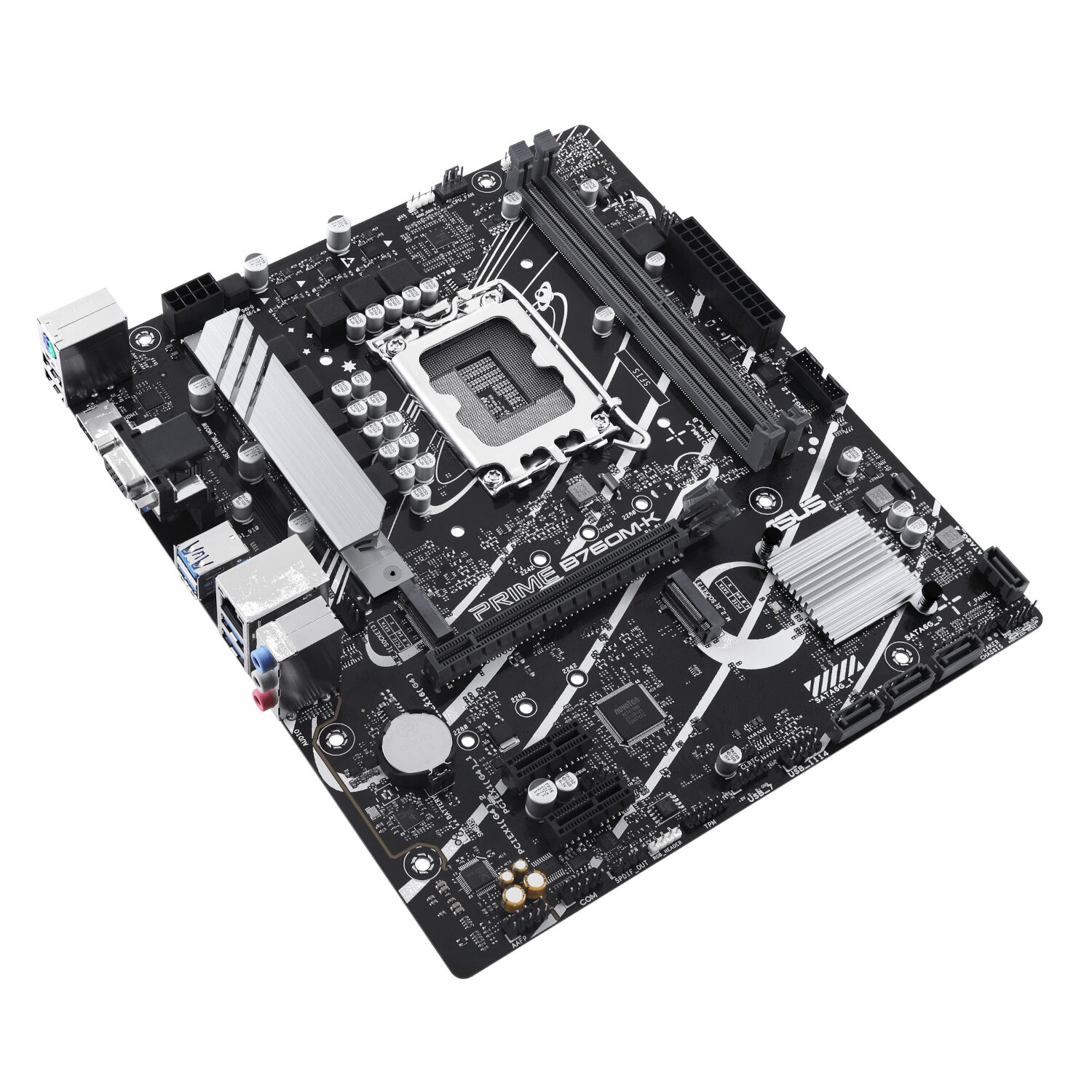

Asus PRIME B760M-K LGA1700 mATX Motherboard

Description

Description

Unleash next-gen performance with the ASUS PRIME B760M-K , a micro-ATX motherboard engineered for versatility, stability, and productivity. Built to support 12th and 13th Gen Intel® Core™ processors, this board is ideal for users seeking a reliable foundation for gaming rigs, creative workstations, or compact business PCs. The ASUS PRIME B760M-K blends essential functionality with premium-grade features, including PCIe 4.0 support, dual M.2 slots for ultra-fast NVMe storage, and ASUS-exclusive technologies designed to optimise performance and cooling.
Targeted at users who demand more from their motherboard without exceeding budget constraints, the ASUS PRIME B760M-K features robust power delivery and customisable fan controls via Fan Xpert 2+. Whether you’re building a gaming setup or a multi-tasking productivity system, this board supports DDR4 memory up to 5333 MHz (OC), ensuring seamless multitasking and reduced load times.
With a clean, professional aesthetic and compatibility with ASUS Aura Sync RGB lighting, the ASUS PRIME B760M-K delivers both visual flair and operational excellence. Enhanced connectivity options, including 2.5Gb Ethernet and rear USB 3.2 Gen 1 ports, round out this high-performance package, making it a future-ready solution for today’s computing demands.
FEATURES:

LGA1700 Socket Compatibility – Supports 12th & 13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
PCIe 4.0 Ready – Unlocks faster data transfer rates for next-gen GPUs and storage solutions.
Dual M.2 Slots – Accommodates up to two NVMe SSDs for rapid boot times and data access.
DDR4 Memory Support – Supports up to 64GB of DDR4 RAM, overclockable to 5333 MHz (OC).
2.5Gb Ethernet – High-speed LAN connectivity for lag-free online gaming and streaming.
USB 3.2 Gen 1 Ports – Fast data transfers and compatibility with a wide range of peripherals.
Fan Xpert 2+ – Intelligent cooling profiles ensure optimal thermal performance.
ASUS DIGI+ VRM – Industry-leading digital power control for stable power delivery.
ASUS LANGuard & Overvoltage Protection – Enhanced durability with hardware-level safeguards.
ASUS Armoury Crate – Unified software for system tuning, RGB control, and driver updates.
Aura Sync Compatibility – Customise and synchronise RGB lighting across compatible devices.

SPECIFICATIONS:

CPU:
Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B760 Chipset
Memory:

2 x DIMM slots, Max. 96GB, DDR5
8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Graphics

1 x VGA port
1 x HDMITM port

Expansion Slots:

Intel® CoreTM Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot
Intel® B760 Chipset

2 x PCIe 4.0 x1 slots

Storage:

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® CoreTM Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Ethernet: 1 x Realtek 2.5Gb Ethernet
USB:

Rear USB (Total 6 ports)

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A）
Front USB (Total 5 ports)

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers

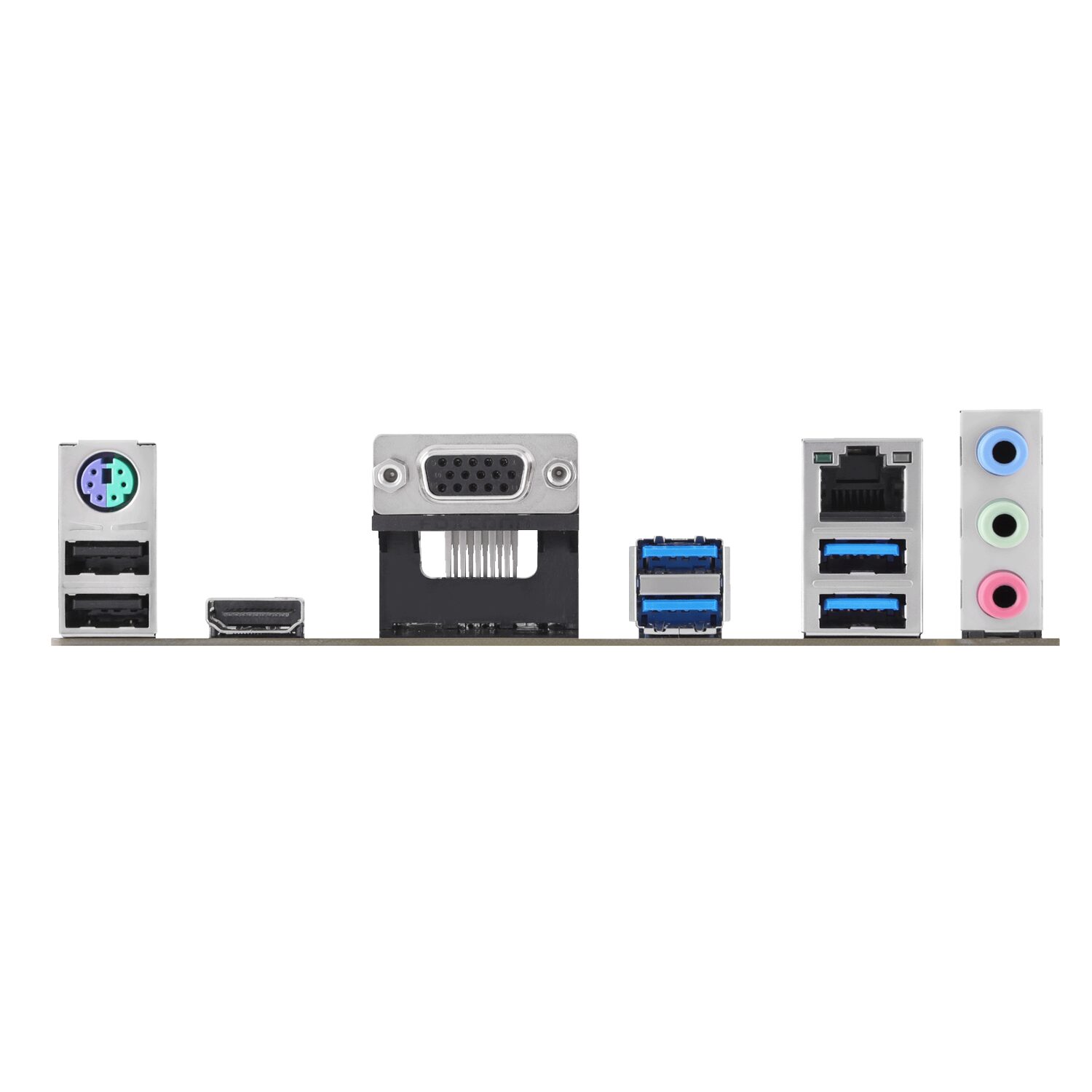

Back Panel I/O Ports:

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors:

Fan and Cooling related

1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous

2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features:

ASUS 5X PROTECTION III

DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core
Stainless-Steel Back I/O

ASUS Q-Design

Q-DIMM
Q-LED Core
Q-Slot

ASUS EZ DIY

ProCool

ASUS Thermal Solution

VRM heatsink design

Aura Sync

Aura RGB header
Addressable Gen 2 headers

Software Features:

ASUS Exclusive Software

Armoury Crate

Aura Sync
Fan Xpert 2+
Power Saving
Two-Way AI Noise Cancellation

AI Suite 3

DIGI+ VRM
PC Cleaner

ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY

ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows® 11, Windows® 10 64-bit
Form Factor: mATX Form Factor (24.4cm x 21.1cm)

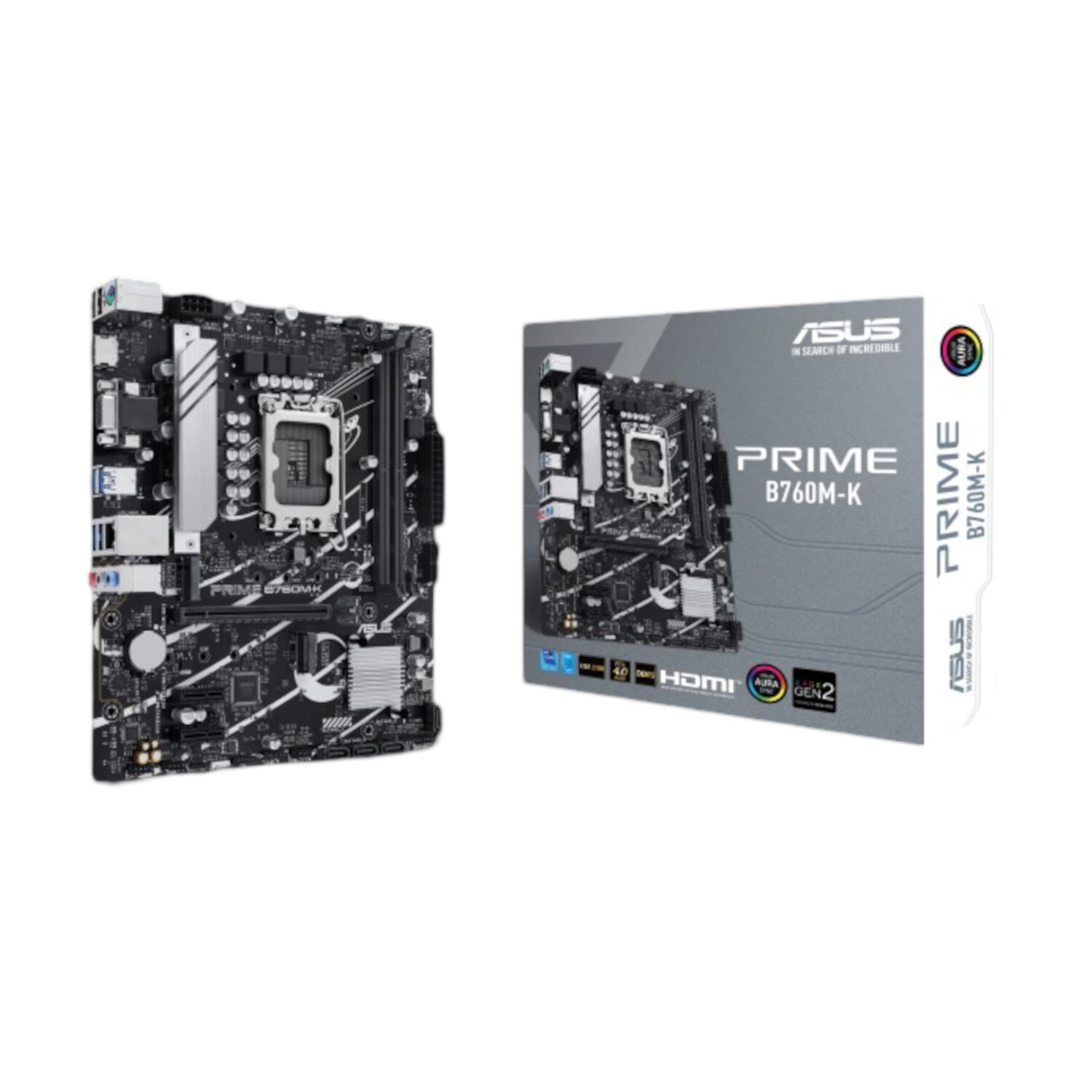

WHAT’S IN THE BOX:

Asus PRIME B760M-K LGA1700 mATX Motherboard x1
SATA 6Gb/s cables x2

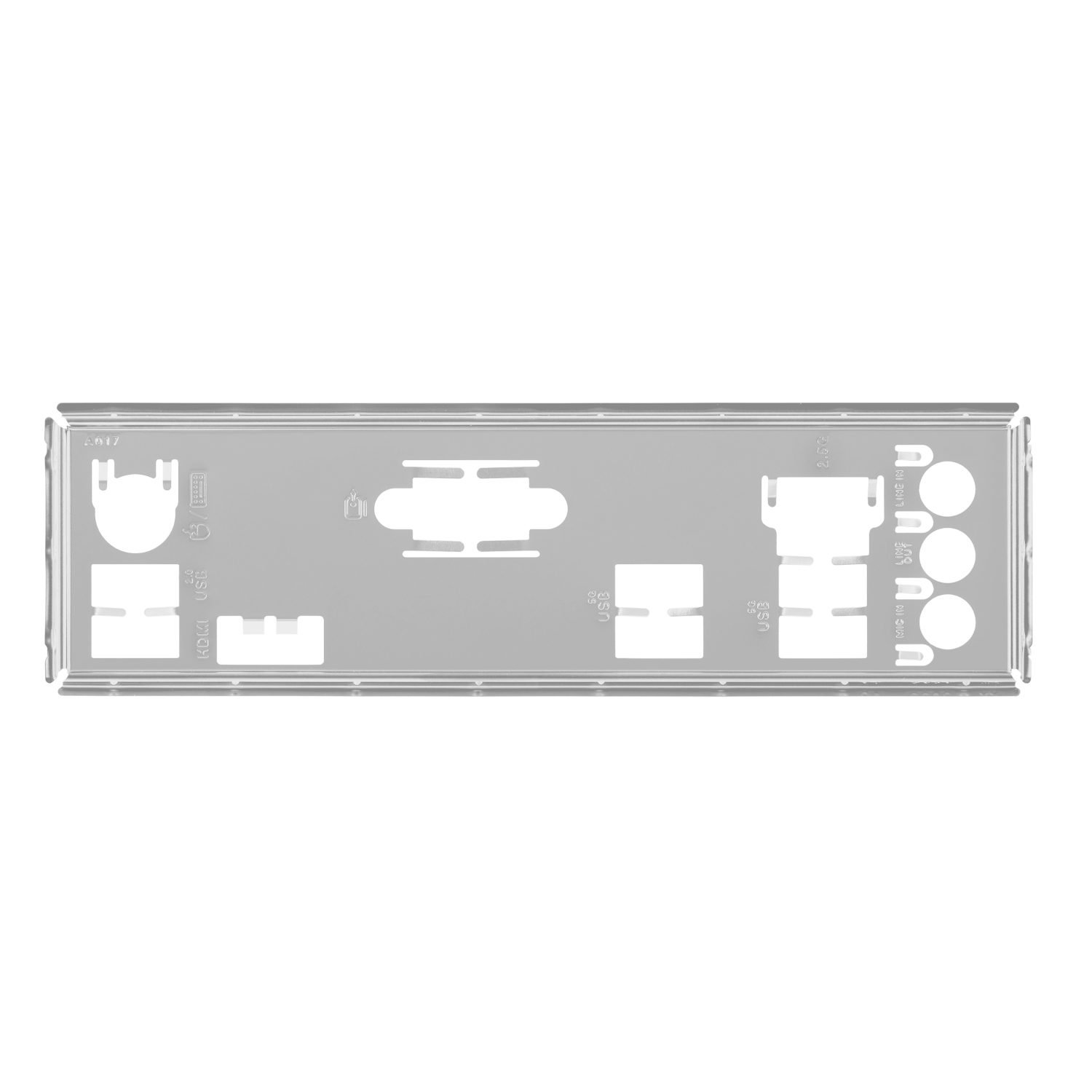

I/O Shield x1
M.2 anchors x2
User guide x1
