ASRock B760M PG Riptide Wi-Fi Intel LGA1700 Micro-ATX Motherboard

Description

The ASRock B760M PG Riptide Wi-Fi is engineered for gamers and power users who demand stability, speed, and uncompromised reliability. Inspired by the strength of ocean currents, this Micro-ATX motherboard delivers powerful performance with support for 14th, 13th, and 12th Gen Intel® Core™ processors on the LGA1700 socket. Built with low-loss PCB materials and designed for overclocking, it unlocks the full potential of DDR5 memory with speeds of up to 7200+ MHz (OC) via Intel® XMP 3.0. The onboard Trouble-Free Protection Circuit for DDR5 ensures safer installation and removal of memory modules, reducing the risk of damage during upgrades.
Equipped with PCIe 4.0 for both GPU and M.2 storage, the B760M PG Riptide Wi-Fi delivers lightning-fast data transfer speeds for gaming and productivity. Dual Hyper M.2 Gen4x4 slots offer high-speed NVMe SSD support, while four SATA3 ports provide ample space for additional storage. The integrated Dragon 2.5G LAN ensures ultra-low latency for competitive gaming, while Wi-Fi 6E with Bluetooth 5.3 keeps you connected wirelessly at high speeds across 2.4GHz, 5GHz, and 6GHz bands. A front USB 3.2 Gen1 Type-C header provides up to 5Gbps transfer speeds with modern peripherals.
Experience rich, detailed sound with the Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio enhancements, perfect for gaming, streaming, and content creation. The integrated RGB lighting can be customized via Polychrome RGB Sync, with additional ARGB and RGB headers allowing you to connect LED strips, cooling fans, and other illuminated hardware for a fully personalized build. Whether you prefer a subtle glow or a vibrant RGB showcase, the B760M PG Riptide Wi-Fi gives you complete control over your system’s aesthetic.
With its micro-ATX form factor, this motherboard is ideal for compact builds without sacrificing expansion capabilities. The reinforced PCIe slot, Auto Driver Installer, and advanced fan control make setup and maintenance simple, while the high-quality components ensure long-term durability. From smooth multitasking to ultra-fast gaming loads, the ASRock B760M PG Riptide Wi-Fi delivers the perfect blend of stability, speed, and modern features for your next PC build.
FEATURES:

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
4 x DDR5 DIMMs supports dual channel, up to 7200+ (OC)
1 PCIe 4.0 x16, 1 PCIe 4.0 x1
Graphics Output Options: HDMI, DisplayPort
Dragon 2.5G LAN + Killer 802.11ax (Wi-Fi 6E) + Bluetooth 5.3
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Supports ASRock Auto Driver Installer

SPECIFICATIONS:

CPU & Chipset

Socket: Intel LGA1700
Supported CPUs: 14th, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Supports ASRock Hyper BCLK Engine
Chipset: Intel® B760

Memory

Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0

Graphics Output

Intel® Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Expansion Slots
CPU:

1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

1 x PCIe 4.0 x1 Slot (PCIE2)*
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2 (Integrated Wi-Fi/BT)

Storage
CPU:

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64Gb/s) mode*

Chipset:

1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64Gb/s) mode*
4 x SATA3 6.0 Gb/s Connectors

Networking

LAN: Realtek Dragon RTL8125BG
Wireless: Wi-Fi 6E (802.11axe) with Bluetooth 5.3
Dual-band 2×2 support with 6GHz band

USB Ports

2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
6 x USB 2.0 (4 Rear, 2 Front)

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

Power Design

14+1+1 Power Phase

Connector

1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

RGB & Aesthetics

ASRock Polychrome RGB Sync
1 x RGB LED header (12V)
3 x Addressable RGB headers (5V)

DIY Features

ASRock Post Status Checker
Auto Driver Installer (via LAN)
Reinforced PCIe Steel Slot
Pre-Installed I/O Shield

Rear I/O Ports

2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Software

ASRock Motherboard Utility (Phantom Gaming Tuning)
ASRock Phantom Gaming LAN Software
Killer Control Center
ASRock Polychrome SYNC

Form Factor

Micro ATX Form Factor (24.4 cm x 24.4 cm)
6-layer PCB design

OS Compatibility

Microsoft Windows® 11 64-bit (Wi-Fi 6E full support)
Microsoft Windows® 10 64-bit (no 6GHz Wi-Fi band)

Certifications: FCC, CE, ErP/EuP Ready

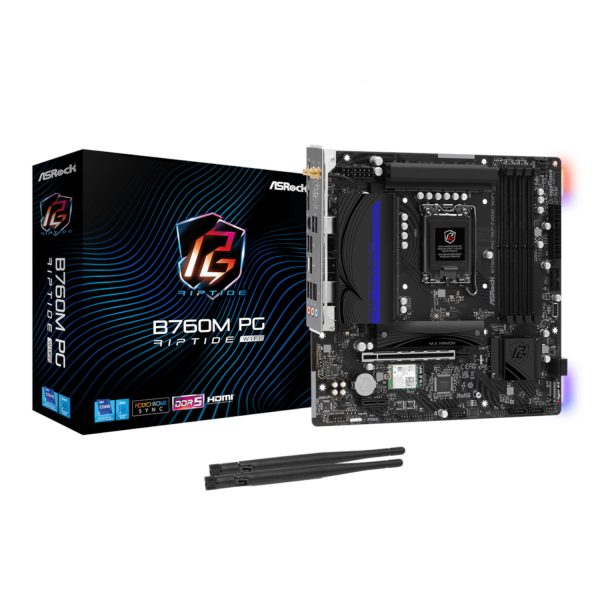

WHAT’S IN THE BOX:

ASRock B760M PG Riptide Wi-Fi Intel LGA1700 Micro-ATX Motherboard x1
SATA Data Cables x2
ASRock Wi-Fi 2.4/5/6 GHz Antennas x2
Screw for M.2 Socket x1
User Manual x1
